OIL PUMP COMPONENTS

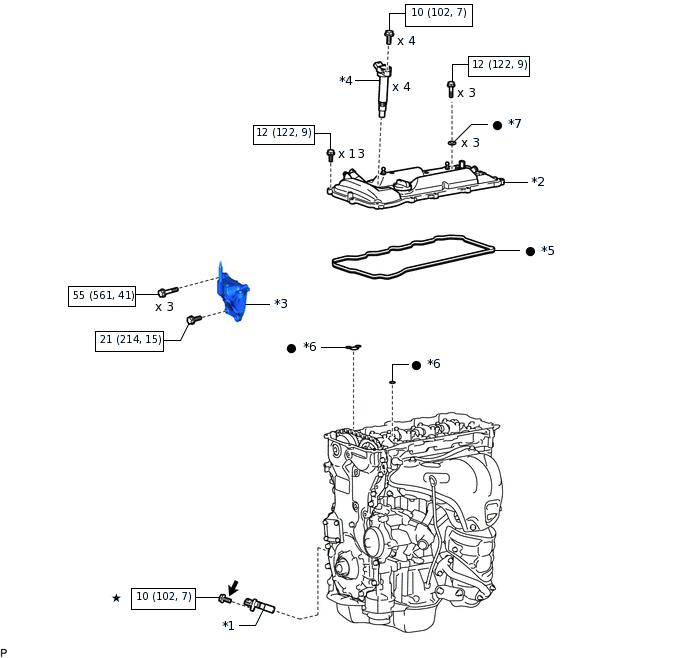

*1	CRANKSHAFT POSITION SENSOR	*2	CYLINDER HEAD COVER SUB-ASSEMBLY
*3	ENGINE MOUNTING BRACKET RH	*4	IGNITION COIL ASSEMBLY
*5	CYLINDER HEAD COVER GASKET	*6	GASKET
*7	SEAL WASHER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	★	Precoated part

*1

CRANKSHAFT POSITION SENSOR

*2

CYLINDER HEAD COVER SUB-ASSEMBLY

*3

ENGINE MOUNTING BRACKET RH

*4

IGNITION COIL ASSEMBLY

*5

CYLINDER HEAD COVER GASKET

*6

GASKET

*7

SEAL WASHER

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

★

Precoated part

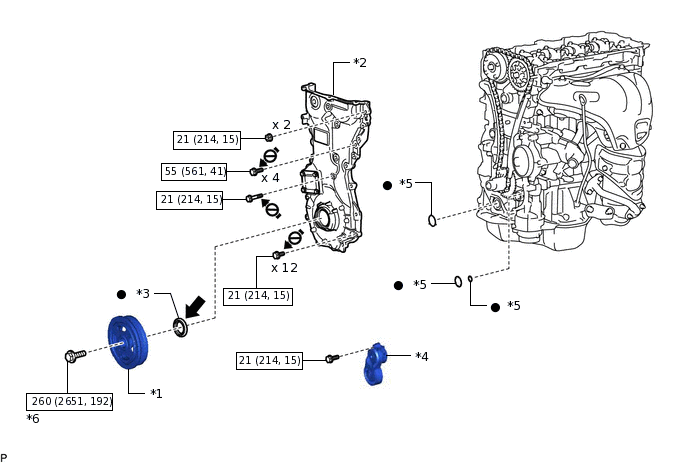

*1	CRANKSHAFT PULLEY	*2	TIMING CHAIN COVER ASSEMBLY
*3	TIMING CHAIN COVER OIL SEAL	*4	V-RIBBED BELT TENSIONER ASSEMBLY
*5	GASKET	*6	CRANKSHAFT PULLEY SET BOLT
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	MP grease No. 2		Do not apply lubricants to the threads
