REAR BUMPER INSTALLATION

PROCEDURE

  1. INSTALL REAR BUMPER UPPER RETAINER LH

    1. Attach the 2 claws to install the rear bumper upper retainer LH.

    2. Install the clip.

  2. INSTALL REAR BUMPER UPPER RETAINER RH

    Tip:

    Use the same procedure described for the LH side.

  3. INSTALL REAR BUMPER SIDE SUPPORT LH

    1. Attach the 3 claws to install the rear bumper side support LH.

    2. Install the screw.

    3. Install the clip.

  4. INSTALL REAR BUMPER SIDE SUPPORT RH

    Tip:

    Use the same procedure described for the LH side.

  5. INSTALL REAR BUMPER ARM SUB-ASSEMBLY LH

    1. Install the rear bumper arm sub-assembly LH with the 3 bolts.

      37 N*m

      377 kgf*cm

      27 ft.*lbf

  6. INSTALL REAR BUMPER ARM SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  7. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

    1. for Step Type:

      Install the rear bumper reinforcement sub-assembly with the 6 bolts.

      37 N*m

      377 kgf*cm

      27 ft.*lbf

    2. w/ TOYOTA Parking Assist-sensor System:

      Install the rear bumper reinforcement sub-assembly with the 6 bolts.

      37 N*m

      377 kgf*cm

      27 ft.*lbf

    3. for Standard Type:

      Install the rear bumper reinforcement sub-assembly with the 6 bolts.

      37 N*m

      377 kgf*cm

      27 ft.*lbf

  8. INSTALL NO. 2 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR

    1. Install the No. 2 luggage compartment service cover protector with the 2 clips.

  9. INSTALL NO. 1 LUGGAGE COMPARTMENT SERVICE COVER PROTECTOR

    Tip:

    Use the same procedure described for the LH side.

  10. INSTALL REAR BUMPER COVER

    1. Attach the 10 claws to install the rear bumper cover.

    2. Install the 2 bolts.

    3. B426421

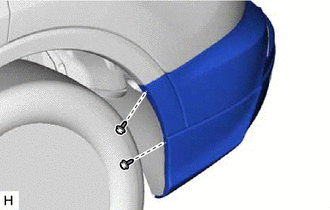

      w/o Mudguard

      1. Install the 2 screws.

        Tip:

        Use the same procedure for the other side.

    4. B439946

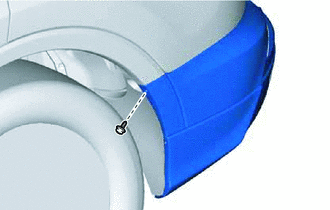

      w/ Mudguard

      1. Install the screw.

        Tip:

        Use the same procedure for the other side.

    5. Install the 2 screws and 6 clips.

  11. INSTALL REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)

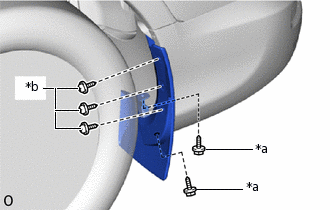

    1. B335666C07

      *a

      Screw A

      *b

      Screw B

      Install the rear quarter panel mudguard LH with the 3 screws labeled B.

    2. Install the 2 screws labeled A.

  12. INSTALL REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

    Tip:

    Use the same procedure described for the LH side.
