FRONT AIRBAG SENSOR INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL FRONT AIRBAG SENSOR LH

    1. Check that the power switch is off.

    2. Check that the cable is disconnected from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    3. Insert the pin (stopper) into the body hole to install the front airbag sensor LH with the bolt.

      9.0 N*m

      92 kgf*cm

      80 in.*lbf

      Note:

      • If the front airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

      • When installing the front airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

      • Make sure that the pin (stopper) is securely inserted into the body hole.

      • Tighten the bolt while holding the front airbag sensor because the front airbag sensor pin (stopper) is easily damaged.

    4. Connect the connector to the front airbag sensor.

      Note:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

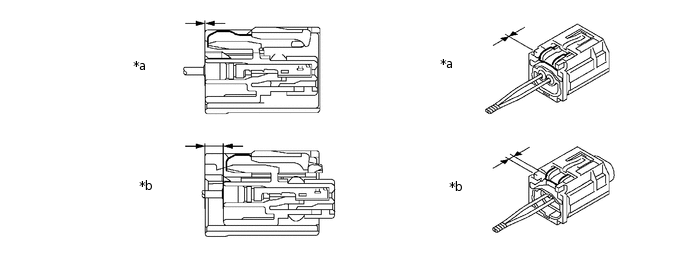

      1. Before connecting the connector, check that the position of the housing lock is correct as shown in the illustration.

        B340848C02

        *a

        Incorrect

        *b

        Correct

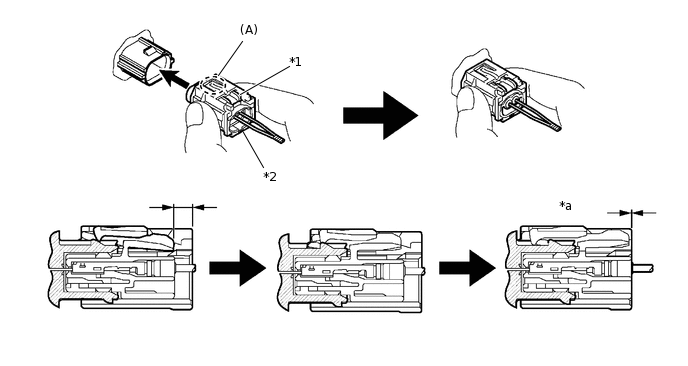

      2. While holding the outer housing be sure to engage the connectors until they are locked and check that the outer housing is in its original position (when locking, make sure that a click sound can be heard).

        Tip:

        When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

        B340850C01

        *1

        Housing Lock

        *2

        Outer Housing

        *a

        Connection is Completed

        -

        -

    5. Check that there is no looseness in the installation parts of the front airbag sensor LH.

  2. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  3. INSTALL BATTERY SERVICE COVER

    Click here

  4. INSTALL DECK BOARD ASSEMBLY

    Click here

  5. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

  6. CHECK SRS WARNING LIGHT

    Click here
