HEADLIGHT CLEANER ACTUATOR COVER REMOVAL

PROCEDURE

  1. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH

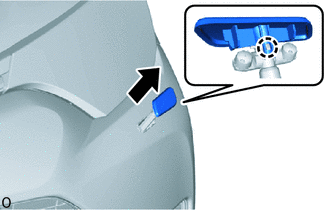

    1. B427885

      Extend the headlight washer nozzle by hand.

      Note:

      Be careful not to damage the headlight washer actuator sub-assembly or headlight washer nozzle.

    2. Detach the claw and remove the headlight cleaner washer nozzle.

  2. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.
