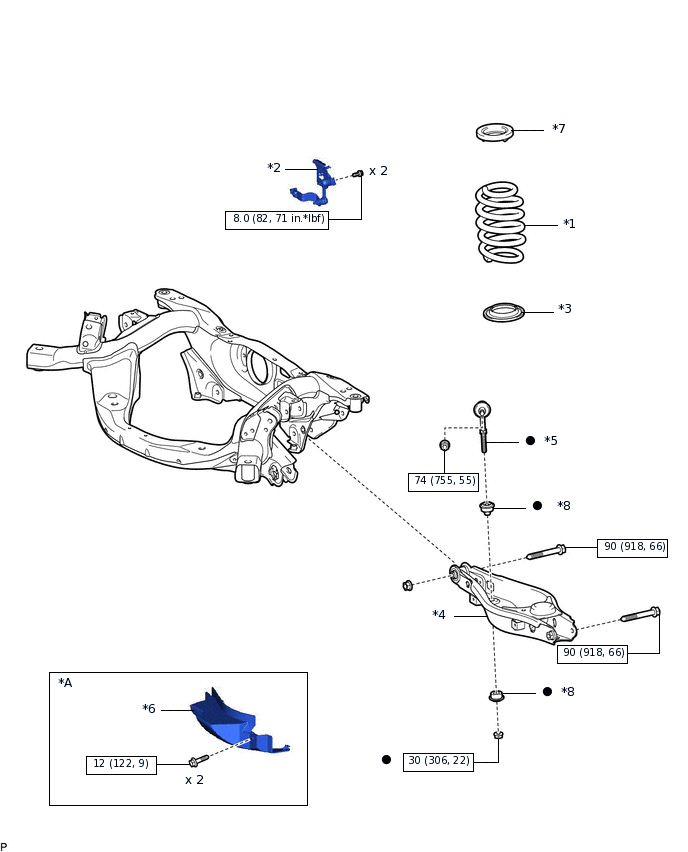

REAR COIL SPRING COMPONENTS
ILLUSTRATION
*A |
w/ Cover |
- |
- |
*1 |
REAR COIL SPRING LH |
*2 |
REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
*3 |
REAR LOWER COIL SPRING INSULATOR LH |
*4 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY LH |
*5 |
REAR STABILIZER LINK ASSEMBLY LH |
*6 |
REAR SUSPENSION ARM COVER LH |
*7 |
REAR UPPER COIL SPRING INSULATOR LH |
*8 |
REAR STABILIZER CUSHION |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
