FUEL SYSTEM


  1. CONSTRUCTION


    1. A steel fuel tank assembly is used.

    2. A fuel drain mark has been provided at the lowest position of the fuel tank assembly. When dismantling (scrapping) the vehicle, drain fuel by drilling a hole at the drain mark.

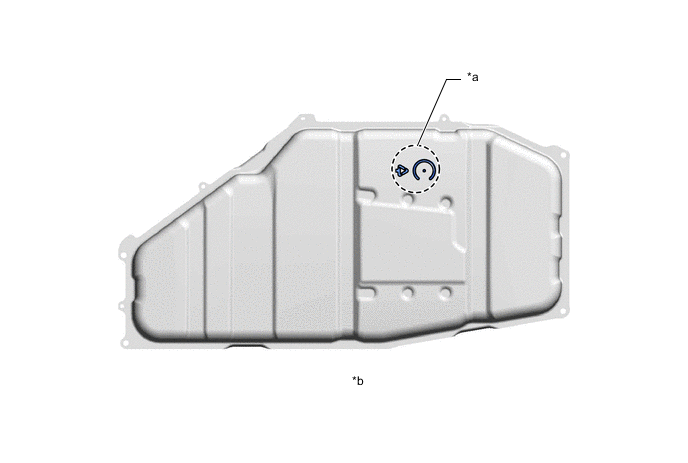

      Figure 1. Except Destination Package for South Korea

      A01R2O3C02
      *a Fuel Drain Mark *b View from Bottom Side

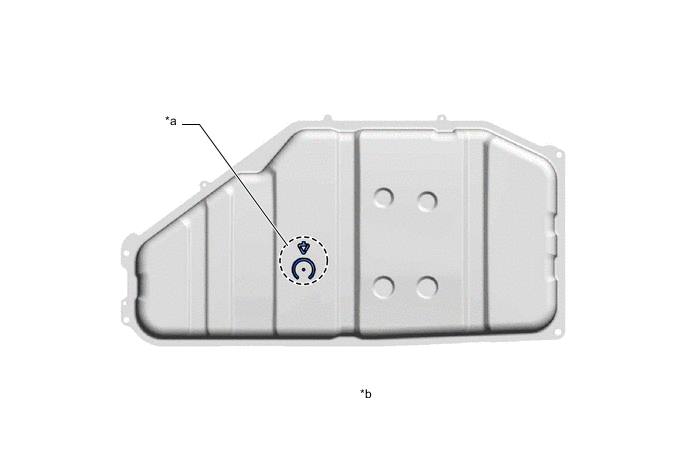

      Figure 2. Destination Package for South Korea

      A01R28HC01
      *a Fuel Drain Mark *b View from Bottom Side
