FRONT PASSENGER SIDE POWER WINDOW SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT UPPER ARMREST BASE PANEL RH

    Click here

  2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

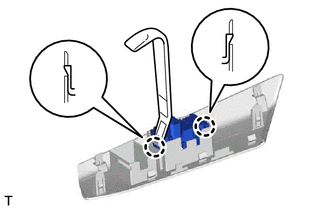

    1. E268540

      Using moulding remover A, detach the 2 claws and remove the power window regulator switch assembly from the front upper armrest base panel RH.

      Note:

      Be careful when detaching the claws as the switch may fall and become damaged.
