BLIND SPOT MONITOR SYSTEM TERMINALS OF ECU

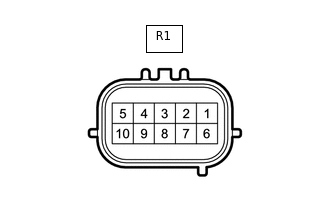

BLIND SPOT MONITOR SENSOR LH (MASTER)
Terminal No. (Symbol)
Wiring Color
Terminal Description
Condition
Specified Condition
R1-4 (OMIL) - R1-10 (BLGD)
V - W-B
Outer rear view mirror indicator power source signal LH
Outer rear view mirror indicator illuminated
2.5 to 7.5 V
Outer rear view mirror indicator not illuminated
Below 1 V
R1-5 (BLB) - R1-10 (BLGD)
L - W-B
IG power source signal
Power switch off
Below 1 V
Power switch on (IG)
11 to 14 V
R1-10 (BLGD) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
BLIND SPOT MONITOR SENSOR RH (SLAVE)
Terminal No. (Symbol)
Wiring Color
Terminal Description
Condition
Specified Condition
T1-3 (BUZ) - T1-10 (BRGD)*
G - W-B
RCTA buzzer (blind spot monitor buzzer) operation signal
RCTA buzzer (blind spot monitor buzzer) not sounding
11 to 14 V
Outer rear view mirror indicator blinks
Alternating between 0 to 7.5 V
RCTA buzzer (blind spot monitor buzzer) sounding
Alternating between 0 to 14 V
T1-4 (OMIR) - T1-10 (BRGD)
V - W-B
Outer rear view mirror indicator power source signal RH
Outer rear view mirror indicator illuminated
2.5 to 7.5 V
Outer rear view mirror indicator not illuminated
Below 1 V
T1-5 (BRB) - T1-10 (BRGD)
L - W-B
IG power source signal
Power switch off
Below 1 V
Power switch on (IG)
11 to 14 V
T1-10 (BRGD) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
*: w/ RCTA Function
