ROOF HEADLINING REASSEMBLY
CAUTION / NOTICE / HINT
Use the same procedure for RHD and LHD vehicles.
The procedure listed below is for LHD vehicles.
PROCEDURE
INSTALL TONNEAU COVER STOPPER
Tip:Use the same procedure for both tonneau cover stoppers.
-
Install the tonneau cover stopper with the 2 screws.
-
INSTALL TONNEAU COVER STOPPER SILENCER (w/ Silencer)
Tip:Use the same procedure for both tonneau cover stopper silencers.
-
Install a new tonneau cover stopper silencer in the location shown in the illustration using double-sided tape.
-
INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
INSTALL NO. 1 ROOF WIRE

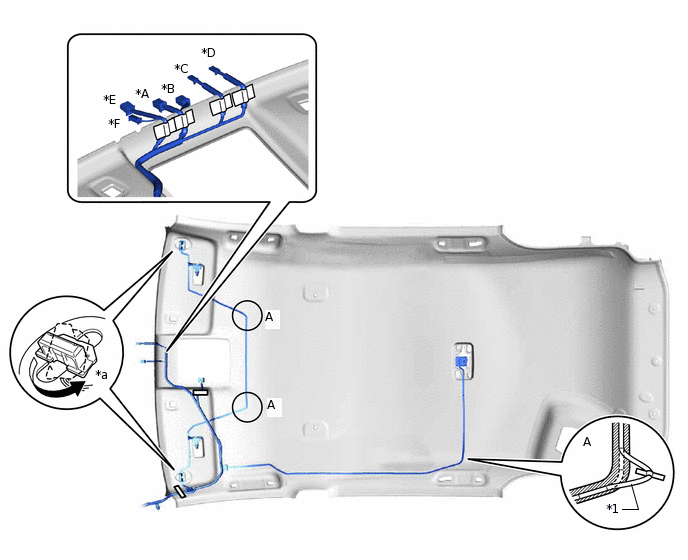

w/o Sliding Roof:

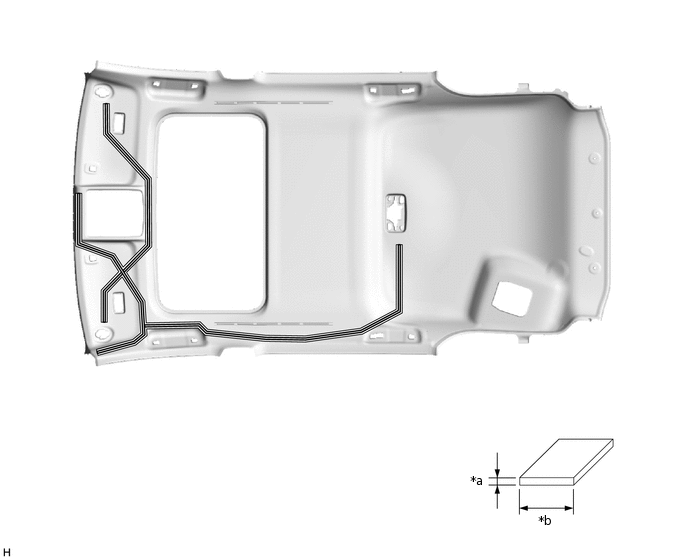

Apply new double-sided tape as shown in the illustration.
*a
1 mm (0.0394 in.)
*b
15 mm (0.590 in.)
Double-sided Tape
-
-
Attach the No. 1 roof wire to the double-sided tape.
Apply new one-sided tape.
Turn the 2 connectors approximately 90° counter clockwise to connect them.
If any slack forms, take up the slack in the areas A shown in the illustration.
Note:Secure any wire that protrudes from the double-sided tape with one-sided tape.
Check that the No. 1 roof wire is not twisted, raised, or protruding in any way.
*A
w/ EC Mirror, w/o Pre-crash Safety System
*B
w/ EC Mirror, w/ Pre-crash Safety System
*C
w/ Rain Sensor, w/o Pre-crash Safety System
*D
w/ Rain Sensor, w/ Pre-crash Safety System
*E
w/ Pre-crash Safety System
*F
w/ Camera Heater
*1
No. 1 Roof Wire
-
-
*a
90°
-
-
One-sided Tape
Double-sided Tape

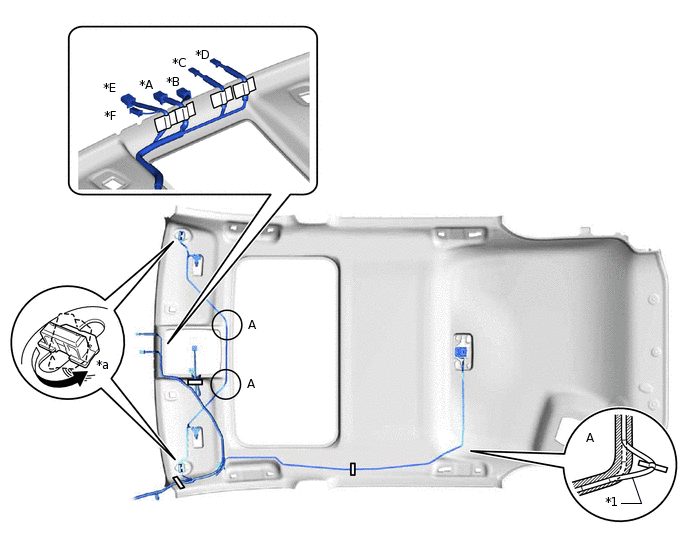

w/ Sliding Roof:

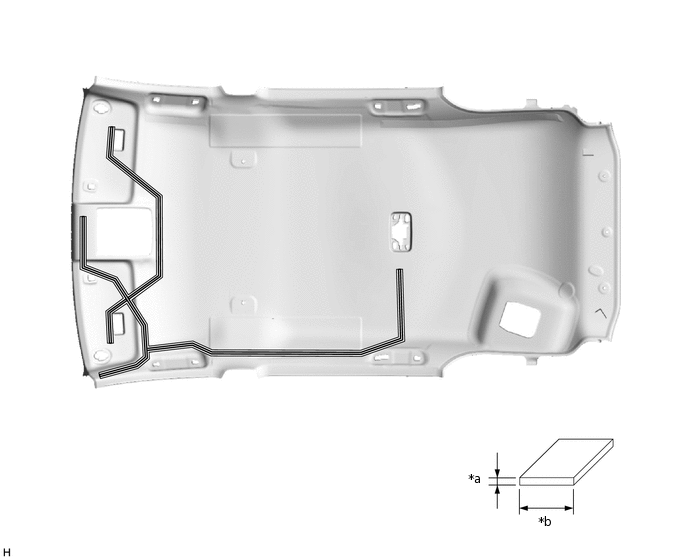

Apply new double-sided tape as shown in the illustration.
*a
1 mm (0.0394 in.)
*b
15 mm (0.590 in.)
Double-sided Tape
-
-
Attach the No. 1 roof wire to the double-sided tape.
Apply new one-sided tape.
Turn the 2 connectors approximately 90° counter clockwise to connect them.
If any slack forms, take up the slack in the areas A shown in the illustration.
Note:Secure any wire that protrudes from the double-sided tape with one-sided tape.
Check that the No. 1 roof wire is not twisted, raised, or protruding in any way.
*A
w/ EC Mirror, w/o Pre-crash Safety System
*B
w/ EC Mirror, w/ Pre-crash Safety System
*C
w/ Rain Sensor, w/o Pre-crash Safety System
*D
w/ Rain Sensor, w/ Pre-crash Safety System
*E
w/ Pre-crash Safety System
*F
w/ Camera Heater
*1
No. 1 Roof Wire
-
-
*a
90°
-
-
One-sided Tape
Double-sided Tape
INSTALL VANITY LIGHT ASSEMBLY LH
-
*a
Bulb Holder

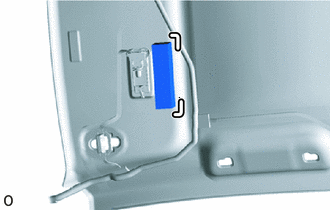

Attach the claw to install the vanity light assembly LH.
Attach the 2 claws to connect the bulb holder to the vanity light assembly LH.
-
INSTALL VANITY LIGHT ASSEMBLY RH
Tip:Use the same procedure described for the LH side.
INSTALL CENTER ROOF HEADLINING PAD

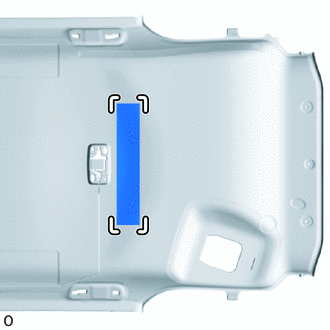

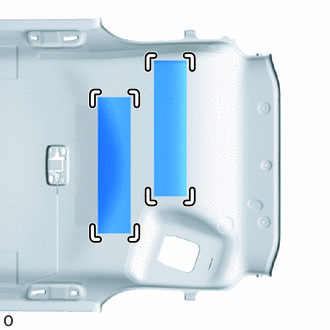

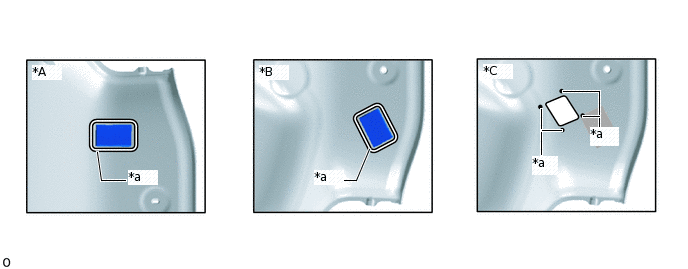

Install 2 new center roof headlining pads using double-sided tape, hot-melt glue or adhesive as shown in the illustration.
*A
for RH Side
*B
for LH Side, Type A
*C
for LH Side, Type B
-
-
*a
Silencer Marking
-
-
INSTALL NO. 2 ROOF HEADLINING PAD (w/o Sliding Roof, for Cold Area)
-
Silencer Marking

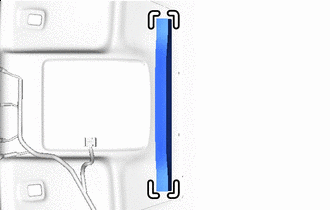

Install a new No. 2 roof headlining pad using double-sided tape, hot-melt glue or adhesive as shown in the illustration.
-
INSTALL ROOF HEADLINING PAD (w/o Sliding Roof, for Cold Area)
Tip:Use the same procedure for both roof headlining pads.
-
Silencer Marking
Install a new roof headlining pad using double-sided tape, hot-melt glue or adhesive as shown in the illustration.
-
INSTALL NO. 3 ROOF SILENCER PAD
-
Silencer Marking
Install a new No. 3 roof silencer pad using double-sided tape, hot-melt glue or adhesive as shown in the illustration.
-
INSTALL NO. 1 ROOF SILENCER PAD
w/o Sliding Roof:

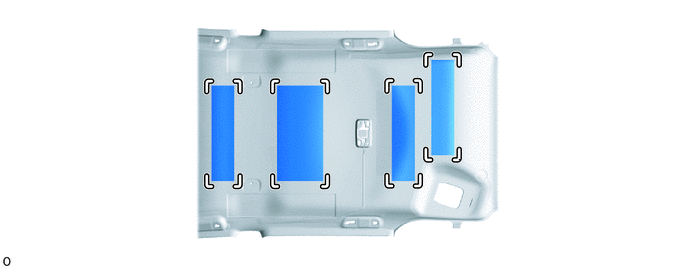

Install 5 new No. 1 roof silencer pads using double-sided tape, hot-melt glue or adhesive as shown in the illustration.
Silencer Marking
-
-
w/ Sliding Roof:
-
Silencer Marking
Install 2 new No. 1 roof silencer pads using double-sided tape, hot-melt glue or adhesive as shown in the illustration.
-
