FUEL SYSTEM

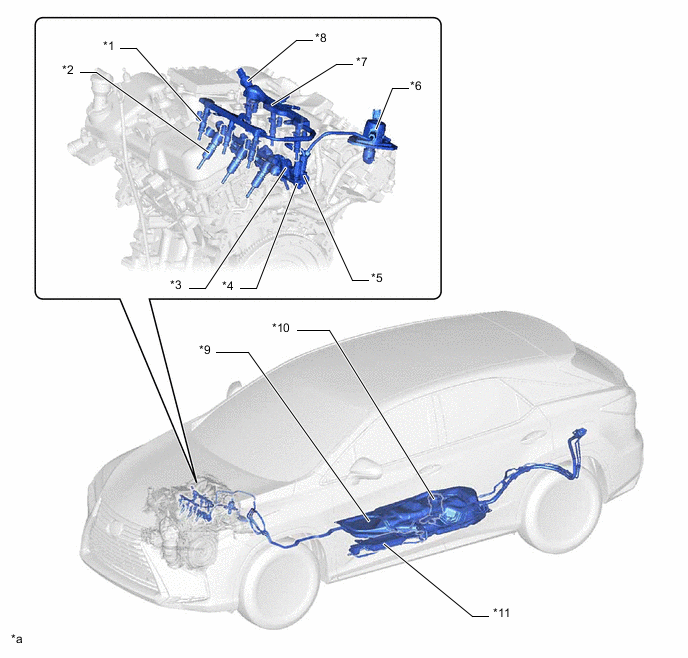

Figure 1. Except Models for EURO VId-TEMP and Destination Package for South Korea
| *1 | FUEL INJECTOR ASSEMBLY (for Port Injection) | *2 | FUEL INJECTOR ASSEMBLY (for Direct Injection) |
| *3 | FUEL PRESSURE SENSOR (for High Pressure) | *4 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY (for Direct Injection) |
| *5 | FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection) | *6 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *7 | FUEL DELIVERY PIPE SUB-ASSEMBLY (for Port Injection) | *8 | FUEL PRESSURE SENSOR (for Low Pressure) |
| *9 | FUEL TANK ASSEMBLY | *10 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
|
| *11 | CANISTER | - | - |
| *a | The illustrations shown are examples only. | - | - |

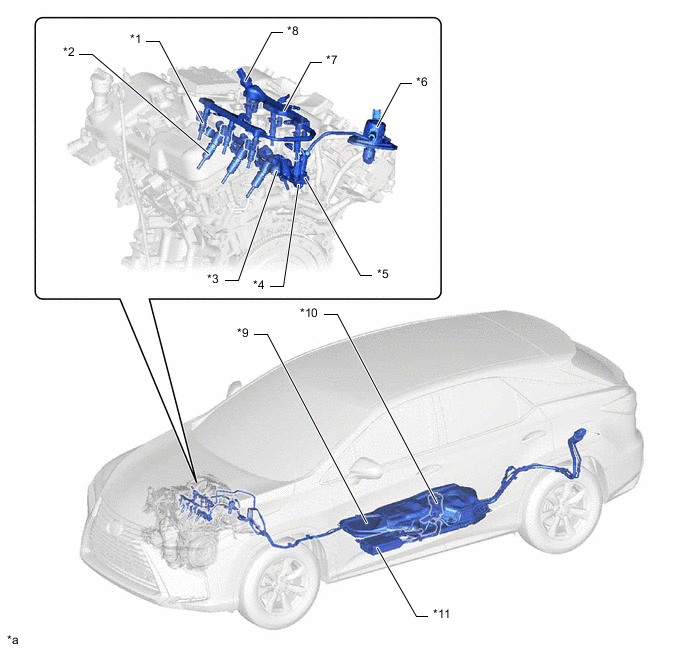

Figure 2. Destination Package for South Korea
| *1 | FUEL INJECTOR ASSEMBLY (for Port Injection) | *2 | FUEL INJECTOR ASSEMBLY (for Direct Injection) |
| *3 | FUEL PRESSURE SENSOR (for High Pressure) | *4 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY (for Direct Injection) |
| *5 | FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection) | *6 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *7 | FUEL DELIVERY PIPE SUB-ASSEMBLY (for Port Injection) | *8 | FUEL PRESSURE SENSOR (for Low Pressure) |
| *9 | FUEL TANK ASSEMBLY | *10 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
|
| *11 | CANISTER | - | - |
| *a | The illustrations shown are examples only. | - | - |
Figure 3. Models for EURO VId-TEMP
| *1 | FUEL INJECTOR ASSEMBLY (for Port Injection) | *2 | FUEL INJECTOR ASSEMBLY (for Direct Injection) |
| *3 | FUEL PRESSURE SENSOR (for High Pressure) | *4 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY (for Direct Injection) |
| *5 | FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection) | *6 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *7 | FUEL DELIVERY PIPE SUB-ASSEMBLY (for Port Injection) | *8 | FUEL PRESSURE SENSOR (for Low Pressure) |
| *9 | FUEL TANK ASSEMBLY | *10 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
|
| *11 | CANISTER | - | - |
| *a | The illustrations shown are examples only. | - | - |
