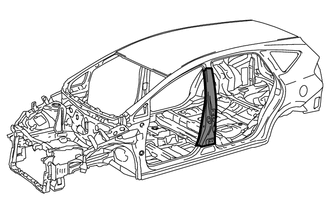

CENTER BODY PILLAR CUT AND JOIN REPLACEMENT SECTIONS

A0050E6

  1. REMOVAL

    Symbol meaning
    A0050K6 Remove Weld Points
    A0050FX Cut and Join Location
    A0050FI Cut Location for Supply Parts

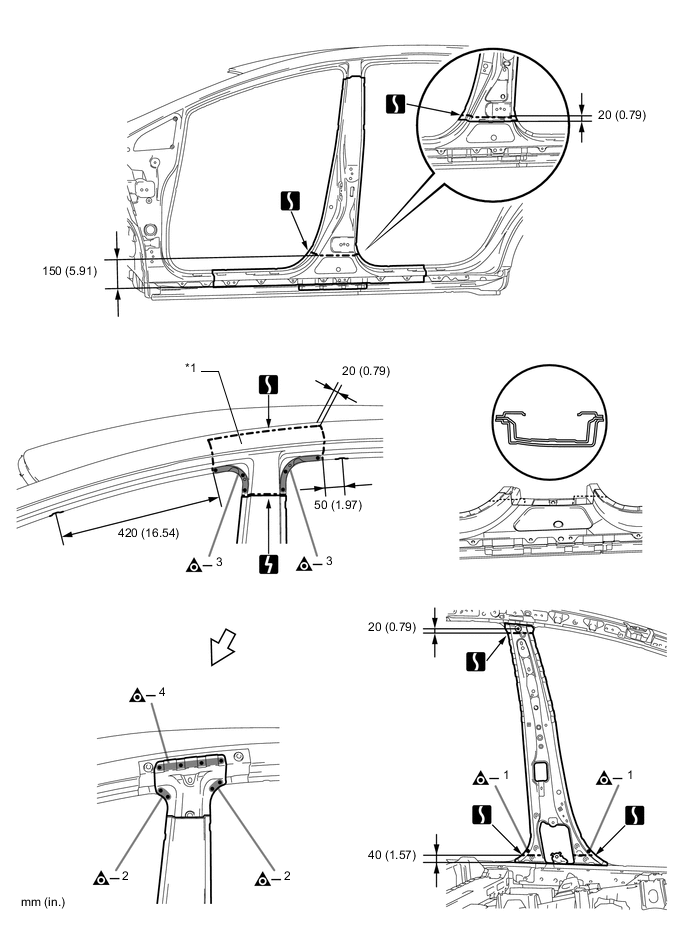

      REMOVAL POINT

    1. *1 is reused.

    A0050HCE02

  2. INSTALLATION

    Symbol meaning
    A0050CS Plug Weld
    A0050FX Cut and Join Location
    A0050IX Butt Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. If the entire supply part is not needed, remove the part of the supply part that is needed.

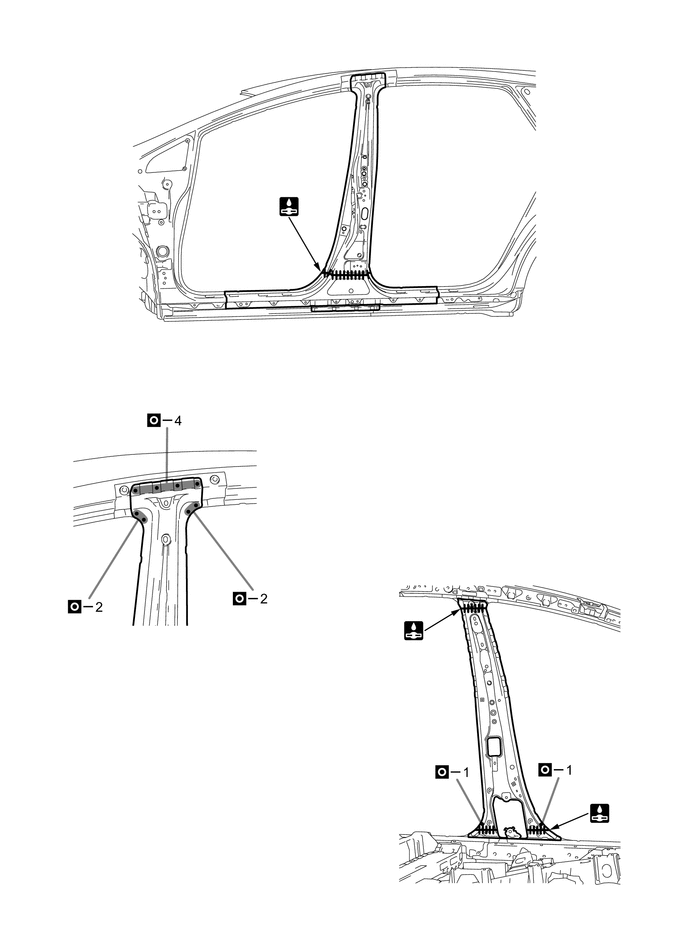

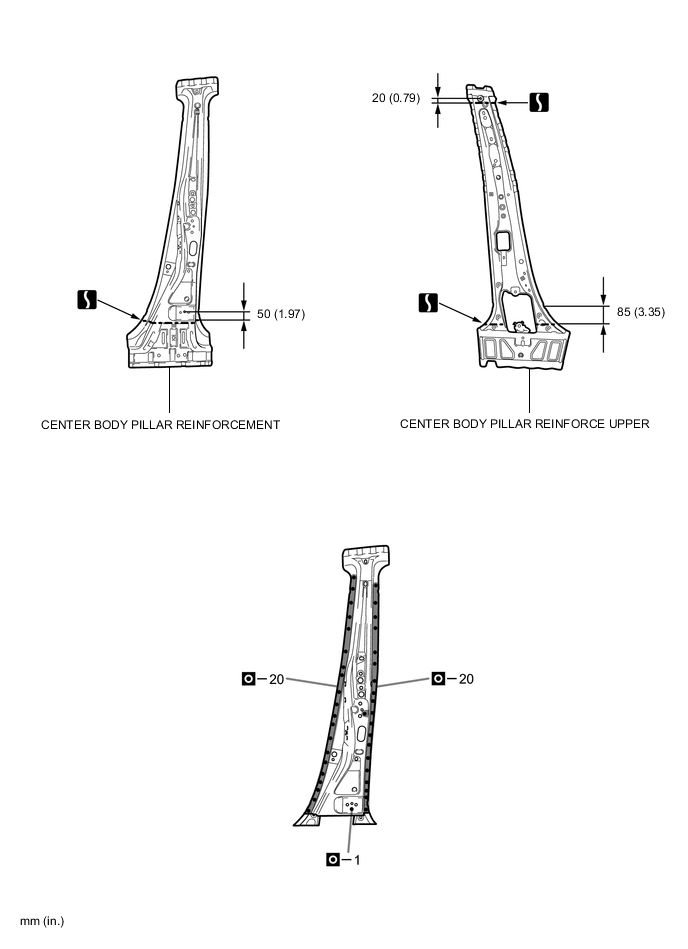

    4. Before temporarily installing the new parts, weld the center body pillar reinforcement and center body pillar reinforce upper with the standard number of welding points.

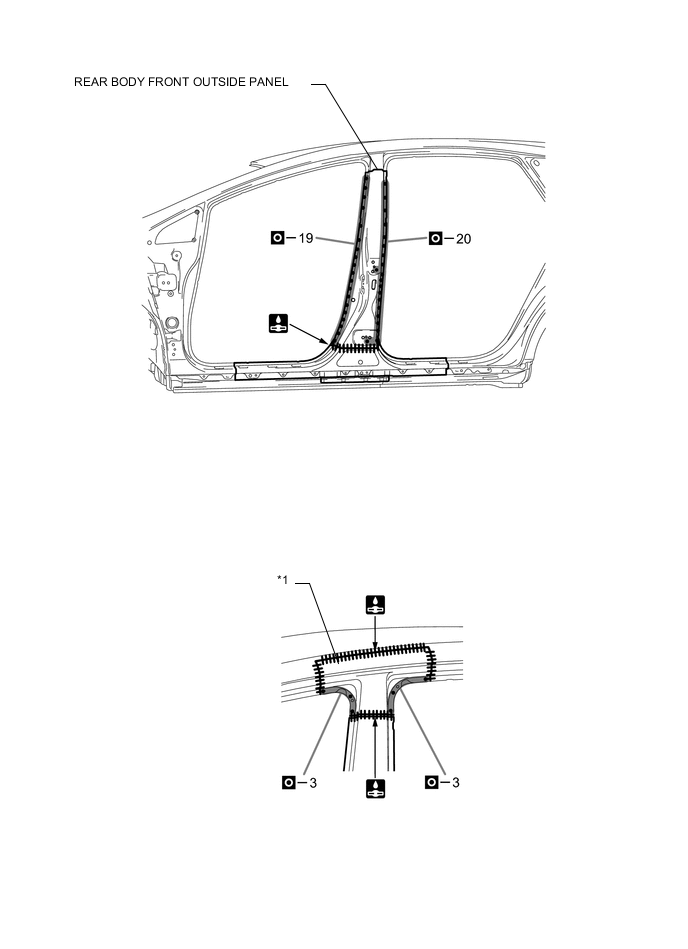

    5. After welding the center body pillar reinforcement and center body pillar reinforce upper to the vehicle side, install the rear body front outside panel and *1.

    6. After welding, apply the foamed sealing material to the corresponding parts. (See the painting / coating)

    7. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
