DIFFERENTIAL OIL SEAL REPLACEMENT

PROCEDURE

  1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Click here

  2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

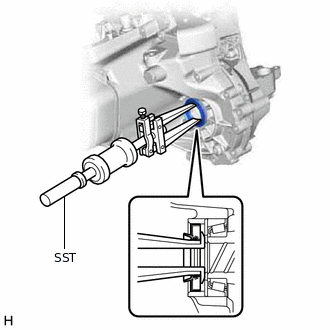

    1. C304415N01

      Using SST, remove the front drive shaft oil seal LH from the manual transaxle assembly.

      09308-00010

  3. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

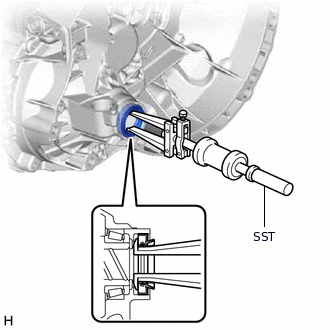

    1. C304416N01

      Using SST, remove the front drive shaft oil seal RH from the manual transaxle assembly.

      09308-00010

  4. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

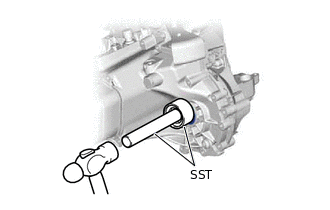

    1. C308791N01

      Coat the lip of a new front drive shaft oil seal LH with MP grease.

    2. Using SST and a hammer, install the front drive shaft oil seal LH to the manual transaxle assembly.

      09950-70010

      09951-07150

      09710-30050

      Note:

      Be careful not to damage the lip of the front drive shaft oil seal LH.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

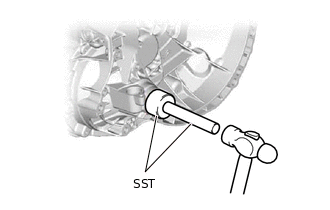

    1. C308792N01

      Coat the lip of a new front drive shaft oil seal RH with MP grease.

    2. Using SST and a hammer, install the front drive shaft oil seal RH to the manual transaxle assembly.

      09950-70010

      09951-07150

      09710-30021

      09710-03101

      Note:

      Be careful not to damage the lip of the front drive shaft oil seal RH.

  6. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Click here
