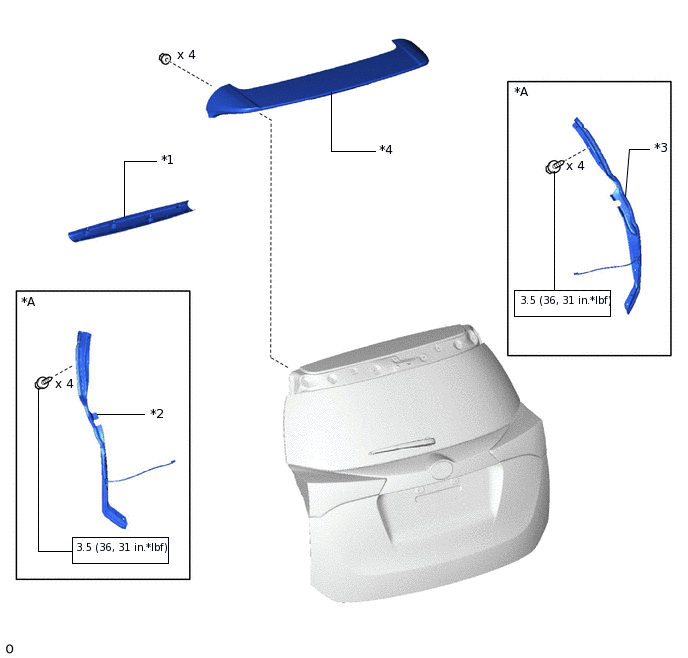

REAR SPOILER COMPONENTS

*A	w/ Power Back Door	-	-
*1	BACK DOOR CENTER GARNISH	*2	POWER BACK DOOR SENSOR ASSEMBLY LH
*3	POWER BACK DOOR SENSOR ASSEMBLY RH	*4	REAR SPOILER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

*A

w/ Power Back Door

-

*1

BACK DOOR CENTER GARNISH

*2

POWER BACK DOOR SENSOR ASSEMBLY LH

*3

POWER BACK DOOR SENSOR ASSEMBLY RH

*4

REAR SPOILER

N*m (kgf*cm, ft.*lbf): Specified torque

-

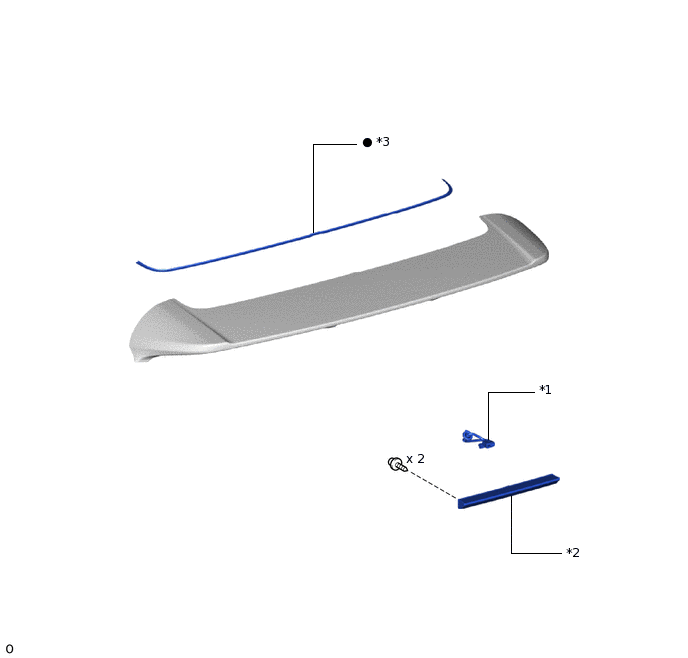

*1	CENTER STOP LIGHT ASSEMBLY	*2	CENTER STOP LIGHT CORD ASSEMBLY
*3	NO. 1 REAR SPOILER PROTECTOR	-	-
●	Non-reusable part	-	-
