REAR COIL SPRING INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

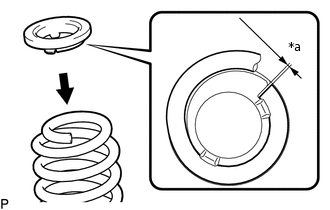

  1. INSTALL REAR UPPER COIL SPRING INSULATOR LH

    C276119C01

    *a

    10 mm (0.394 in.) or less

    1. Install the rear upper coil spring LH insulator to the rear coil spring LH.

      Note:

      Install the rear upper coil insulator LH so that the distance between the stopper and upper end of the rear coil spring LH is 10 mm (0.394 in.) or less.

  2. INSTALL REAR LOWER COIL SPRING INSULATOR LH

    1. Install the rear lower coil spring insulator LH to the rear No. 2 suspension arm assembly LH.

  3. INSTALL REAR COIL SPRING LH

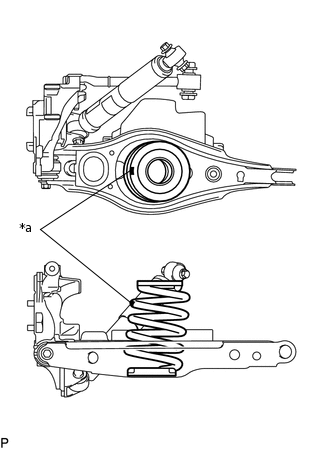

    1. C266194C02

      *a

      Identification Mark

      Install the rear coil spring LH to the rear No. 2 suspension arm assembly LH.

      Note:

      Install the rear coil spring LH so that the identification marks are positioned as shown in the illustration.

    2. C298565

      Using a jack and wooden block, raise the vehicle gradually to install the rear No. 2 suspension arm assembly LH to the rear axle carrier. Then temporarily install the bolt.

  4. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Click here

  5. STABILIZE SUSPENSION

    Click here

  6. TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

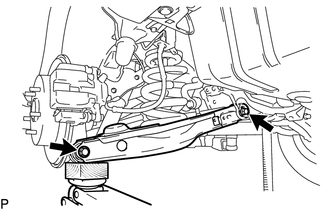

    1. C266199

      Tighten the bolts of the rear No. 2 suspension arm assembly LH.

      90 N*m

      918 kgf*cm

      66 ft.*lbf

      Note:

      Since a stopper nut is used, tighten the bolt.

  7. INSTALL REAR STABILIZER LINK ASSEMBLY LH

    Click here

  8. INSTALL REAR SUSPENSION ARM COVER LH (w/ Cover)

    Click here

  9. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Click here

  10. INSTALL REAR WHEEL

    Click here

  11. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Click here
