CRUISE CONTROL SYSTEM ROAD TEST

  1. INSPECT SET SWITCH

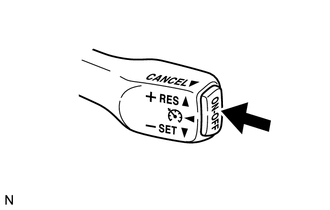

    1. E123589

      Push the cruise control main switch to on.

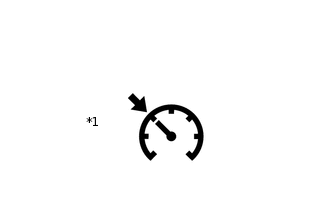

    2. A222996C26

      *1

      Cruise Control Indicator Light

      Check that the cruise control indicator light illuminates on the combination meter assembly.

    3. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

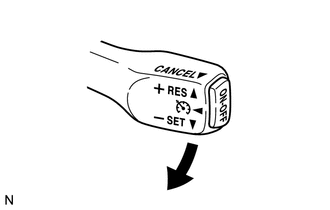

    4. E123591

      Press the cruise control main switch to -SET.

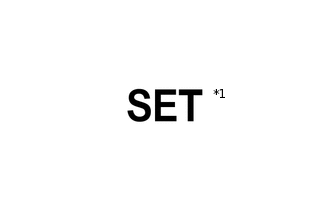

    5. E274603C01

      *1

      Cruise Control SET Indicator Light

      Check that the cruise control SET indicator light illuminates at this time.

    6. After releasing the switch, check that the vehicle cruises at the desired speed.

  2. INSPECT "+" SWITCH

    1. E123589

      Push the cruise control main switch to on.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. E123591

      Press the cruise control main switch to -SET.

    4. Check that the vehicle speed increases while the cruise control main switch is pulled up to +RES, and that the vehicle cruises at the set speed when the switch is released.

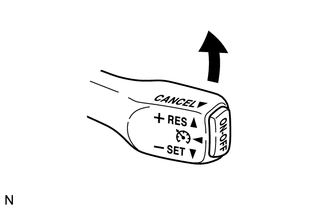

    5. E123590

      Momentarily press the cruise control main switch upward to +RES and then immediately release it. Check that the vehicle speed increases by approximately 1 km/h (or 1 mph) (Tap-up function).

  3. INSPECT "-" SWITCH

    1. E123589

      Push the cruise control control switch to on.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. E123591

      Press the cruise control main switch to -SET.

    4. Check that the vehicle speed decreases while the cruise control main switch is pushed down to -SET, and the vehicle cruises at the set speed when the switch is released.

    5. Momentarily press the cruise control main switch downward to -SET, and then immediately release it. Check that the vehicle speed decreases by approximately 1 km/h (or 1 mph) (Tap-down function).

  4. INSPECT CANCEL SWITCH

    1. E123589

      Push the cruise control main switch to on.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. E123591

      Press the cruise control main switch to -SET.

    4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.

      • Depressing the brake pedal.

      • Moving the shift lever to any position except D or S (6th, 5th or 4th gear).

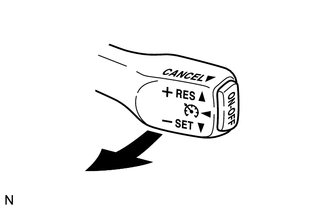

      • E123592

        Pulling the cruise control main switch to CANCEL.

      • E123589

        Pushing the cruise control main switch to off.

  5. INSPECT RES (RESUME) SWITCH

    1. E123589

      Push the cruise control main switch to on.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. E123591

      Press the cruise control main switch to -SET.

    4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.

      • Depressing the brake pedal.

      • Moving the shift lever to any position except D or S (6th, 5th or 4th gear).

      • E123592

        Pulling the cruise control main switch to CANCEL.

    5. E123590

      After the cruise control main switch is pulled up to +RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.
