BACK DOOR DISASSEMBLY

PROCEDURE

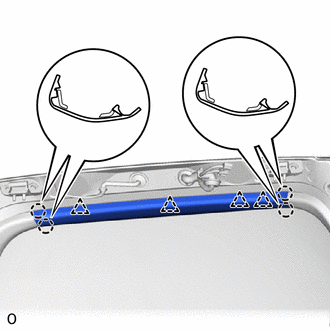

1. REMOVE BACK DOOR CENTER GARNISH

   1.

      Detach the 4 claws and 4 clips and remove the back door center garnish.

2. REMOVE BACK DOOR SIDE GARNISH LH

   1.

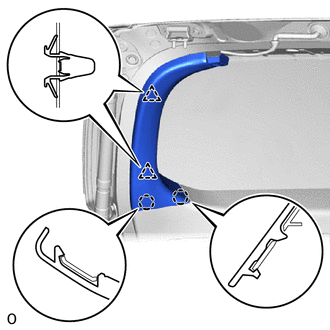

      Detach the 2 claws and 2 clips and remove the back door side garnish LH.

3. REMOVE BACK DOOR SIDE GARNISH RH

   Tip:

   Use the same procedure described for the LH side.

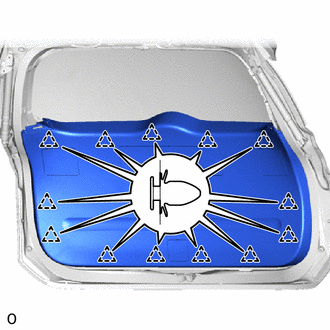

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

   1.

      Detach the 13 clips and remove the back door trim board.

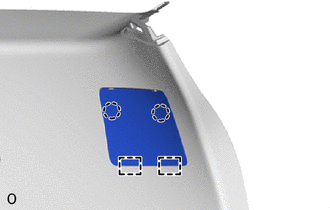

5. REMOVE BACK DOOR SERVICE HOLE COVER LH

   1.

      Detach the 2 claws and 2 guides and remove the back door service hole cover LH.

6. REMOVE BACK DOOR SERVICE HOLE COVER RH

   Tip:

   Use the same procedure described for the LH side.

7. REMOVE BACK DOOR NO. 1 SERVICE HOLE COVER

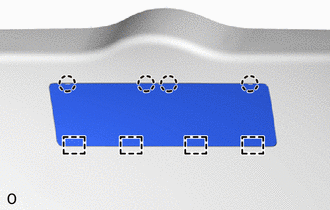

   1.

      Detach the 4 claws and 4 guides and remove the back door No. 1 service hole cover.

8. REMOVE BACK DOOR NO. 2 SERVICE HOLE COVER

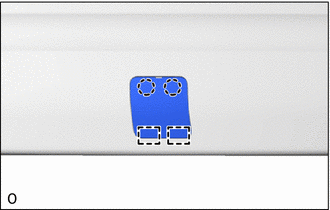

   1.

      Detach the 2 claws and 2 guides and remove the back door No. 2 service hole cover.

9. REMOVE DOOR CONTROL SWITCH ASSEMBLY (w/ Power Back Door)

   Click here

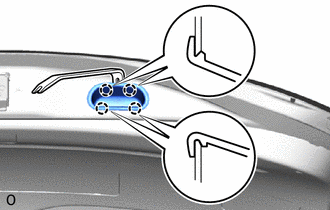

10. REMOVE DOOR PULL HANDLE

    1.

       Using a moulding remover, detach the 4 claws as shown in the illustration and remove the door pull handle.

11. REMOVE BACK DOOR LOCK ASSEMBLY

    Click here

12. REMOVE WIRELESS DOOR LOCK BUZZER (w/ Power Back Door)

    Click here

13. REMOVE MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

    Click here

14. REMOVE REAR WIPER ARM COVER

    Click here

15. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Click here

16. REMOVE NO. 1 REAR WIPER LINK PIVOT WASHER

    Click here

17. REMOVE REAR WIPER MOTOR ASSEMBLY

    Click here

18. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    Click here

19. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

    Tip:

    Use the same procedure described for the LH side.

20. REMOVE REAR LIGHT ASSEMBLY LH

    Click here

21. REMOVE REAR LIGHT ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

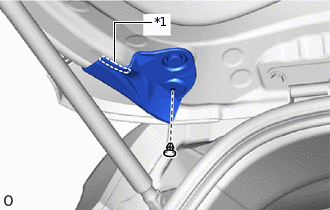

22. REMOVE BACK DOOR GLASS CHANNEL LH

    1.

       *1	Double-sided Tape

       Remove the clip.

    2. Detach the double-sided tape to remove the back door glass channel LH.

23. REMOVE BACK DOOR GLASS CHANNEL RH

    Tip:

    Use the same procedure described for the LH side.

24. REMOVE REAR SPOILER

    Click here

25. REMOVE REAR WASHER NOZZLE SUB-ASSEMBLY

    Click here

26. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Click here

27. REMOVE LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Click here

28. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    Click here

29. REMOVE TELEVISION CAMERA ASSEMBLY (w/ Television Camera)

    Click here

30. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH

    Click here

31. REMOVE LICENSE PLATE LIGHT ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

32. REMOVE POWER BACK DOOR UNIT ASSEMBLY SET LH (w/ Power Back Door)

    Click here

33. REMOVE POWER BACK DOOR UNIT ASSEMBLY SET RH (w/ Power Back Door)

    Tip:

    Use the same procedure described for the LH side.

34. REMOVE BACK DOOR STAY ASSEMBLY LH (w/o Power Back Door)

    Click here

35. REMOVE BACK DOOR STAY ASSEMBLY RH (w/o Power Back Door)

    Tip:

    Use the same procedure described for the LH side.

36. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET LH (w/o Power Back Door)

    Click here

37. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET RH (w/o Power Back Door)

    Tip:

    Use the same procedure described for the LH side.

38. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET LH (w/o Power Back Door)

    Click here

39. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET RH (w/o Power Back Door)

    Tip:

    Use the same procedure described for the LH side.

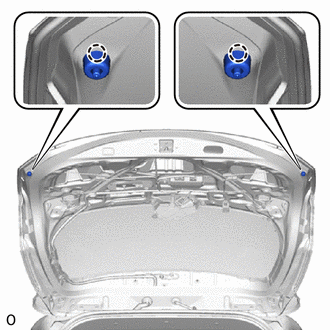

40. REMOVE BACK DOOR PANEL CUSHION

    1.

       Detach the 2 claws to remove the 2 back door panel cushions.
