ПОДОГРЕВАЕМЫЙ КИСЛОРОДНЫЙ ДАТЧИК (для моделей со вспомогательной системой подачи воздуха в нейтрализатор) СНЯТИЕ

CAUTION:


  • Wear protective gloves when removing the heated oxygen sensor.


  • The exhaust pipe assembly is extremely hot immediately after the engine has stopped.


  • Confirm that the exhaust pipe assembly has cooled down before removing it.


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  2. REMOVE HEATED OXYGEN SENSOR (2WD)


    1. A01DX15

      Disconnect the sensor connector.

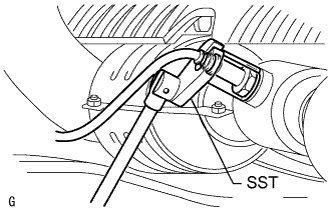

    2. A01DXLLE01

      Using SST, remove the sensor.

      SST
      09224-00010

  3. REMOVE HEATED OXYGEN SENSOR (4WD)


    1. A01DXV6

      Disconnect the sensor connector.

    2. Disconnect the sensor wire from the clamp.

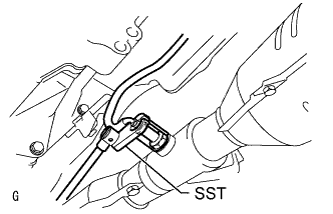

    3. A01DVA1E01

      Using SST, remove the sensor.

      SST
      09224-00010
