LUMBAR SWITCH COMPONENTS
ILLUSTRATION
| *A | for Sports Seat Type | - | - |
| *1 | FRONT SEAT CUSHION SHIELD | *2 | INNER NO. 1 FRONT SEAT CUSHION SHIELD |

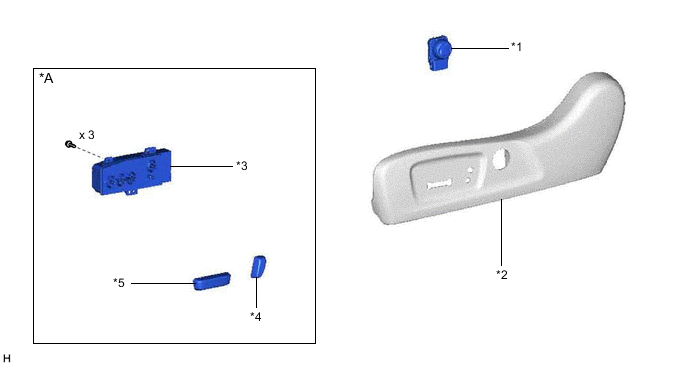

ILLUSTRATION
| *A | w/ Seat Position Memory System | - | - |
| *1 | FRONT LUMBAR POWER SEAT SWITCH | *2 | FRONT SEAT CUSHION SHIELD |
| *3 | POSITION CONTROL ECU AND SWITCH ASSEMBLY | *4 | RECLINING POWER SEAT SWITCH KNOB |
| *5 | SLIDE AND VERTICAL POWER SEAT SWITCH KNOB | - | - |
