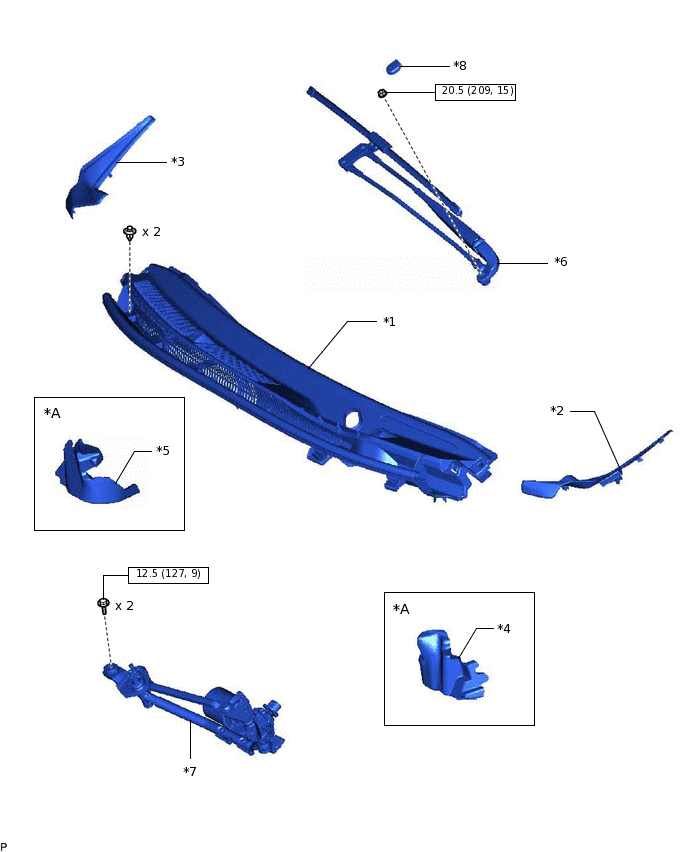

FRONT WIPER MOTOR COMPONENTS
ILLUSTRATION
*A |
w/ Side Air Guide |
- |
- |
*1 |
COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY |
*2 |
FRONT FENDER TO COWL SIDE SEAL LH |
*3 |
FRONT FENDER TO COWL SIDE SEAL RH |
*4 |
FRONT NO. 2 SIDE AIR GUIDE |
*5 |
FRONT SIDE AIR GUIDE |
*6 |
FRONT WIPER ARM AND BLADE ASSEMBLY |
*7 |
FRONT WIPER MOTOR AND LINK ASSEMBLY |
*8 |
WINDSHIELD WIPER ARM COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
