OUTER REAR VIEW MIRROR COMPONENTS

ILLUSTRATION

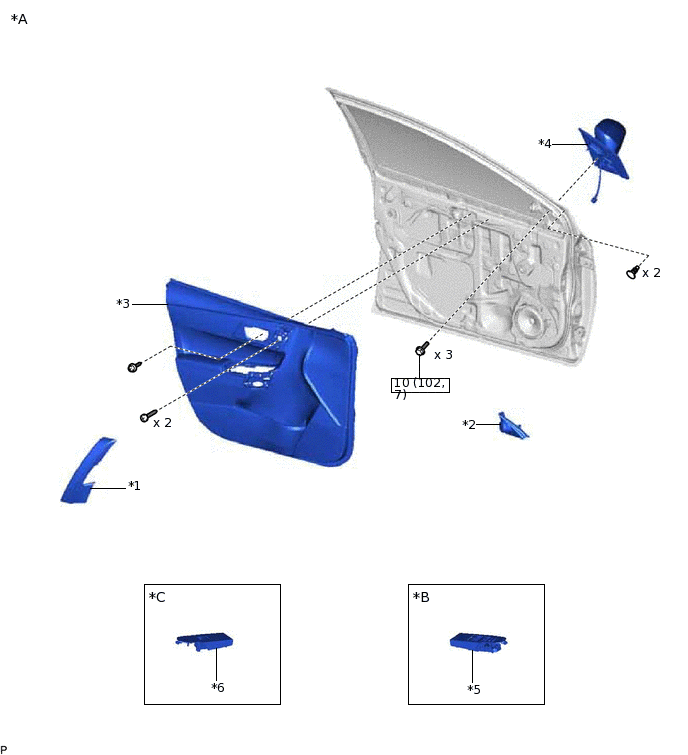

B330977C03

*A

for Hatchback, Wagon

*B

for Driver Side

*C

for Front Passenger Side

-

-

*1

DOOR ASSIST GRIP ASSEMBLY

*2

FRONT DOOR LOWER FRAME BRACKET GARNISH

*3

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*4

OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

*5

POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

*6

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

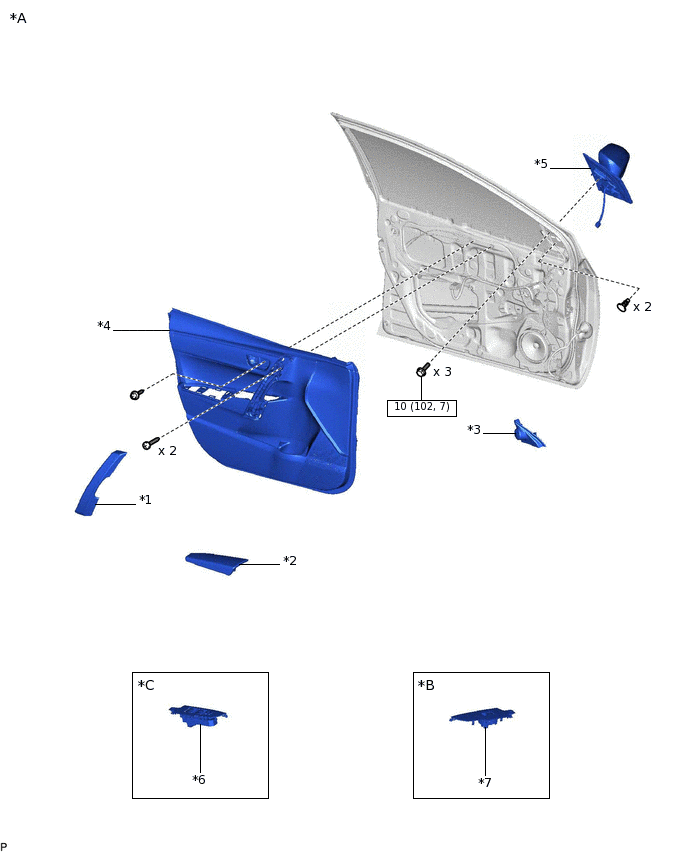

B352197C02

*A

for Sedan

*B

for Driver Side

*C

for Front Passenger Side

-

-

*1

DOOR ASSIST GRIP COVER

*2

FRONT ARMREST ASSEMBLY

*3

FRONT DOOR LOWER FRAME BRACKET GARNISH

*4

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*5

OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

*6

POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

*7

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

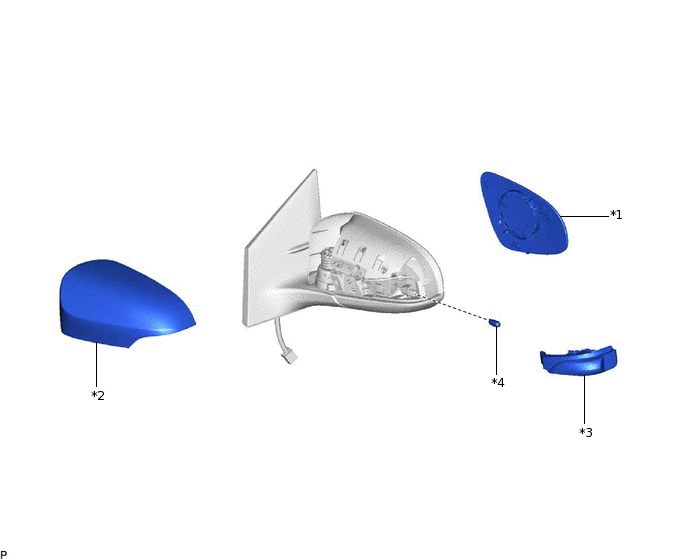

B330978C03

*1

OUTER MIRROR

*2

OUTER MIRROR COVER

*3

SIDE TURN SIGNAL LIGHT ASSEMBLY

*4

SIDE TURN SIGNAL LIGHT BULB
