SIDE AIRBAG SENSOR REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

    Click here

  6. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Click here

  7. REMOVE FRONT DOOR ASSIST GRIP COVER LH

    Click here

  8. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

    Click here

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Click here

  10. REMOVE DOOR SIDE AIRBAG SENSOR LH

    1. Check that the power switch is off.

    2. Check that the cable is disconnected from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    3. Disconnect the connector from the door side airbag sensor LH.

      Note:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

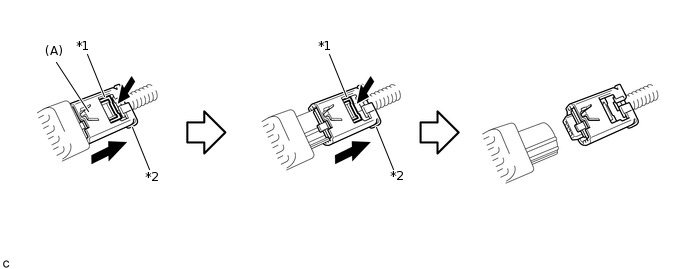

      1. Push the housing lock and slide the outer housing. (At this time, the connector cannot be disconnected yet.)

      2. Push the housing lock again and disconnect the connector.

        Note:

        Do not push the connector housing part (A) when disconnecting the sensor connector.

        C195226C13

        *1

        Housing Lock

        *2

        Outer Housing

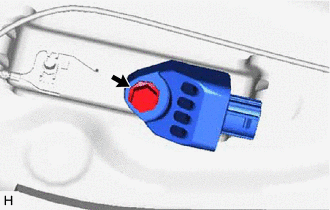

    4. B339277

      Remove the bolt and door side airbag sensor LH.

      Note:

      Loosen the bolt while holding the door side airbag sensor LH because the door side airbag sensor pin (stopper) is easily damaged.
