FUEL PUMP(w/ Canister Pump Module) REASSEMBLY

CAUTION / NOTICE / HINT

Note:

Do not try to remove the black nylon tube as it is welded to the fuel suction tube assembly.

Click here

Tip:

Perform "Inspection After Repairs" after replacing the fuel pump.

Click here

PROCEDURE

  1. INSTALL FUEL PUMP ASSEMBLY WITH FILTER

    Tip:

    Perform "Inspection After Repairs" after replacing the fuel pump.

    Click here

    1. Apply gasoline to a new O-ring. Then install the fuel pump spacer and O-ring to the fuel pump assembly with filter.

    2. Connect the fuel pump harness connector.

    3. Attach the 5 claws of the fuel filter assembly and install the fuel pump assembly with filter.

  2. INSTALL NO. 1 FUEL SUCTION SUPPORT

    1. Attach the 2 claws and install the No. 1 fuel suction support to the fuel filter assembly.

  3. INSTALL NO. 1 FUEL SUB-TANK

    1. Apply gasoline to a new O-ring and install it to the jet pump.

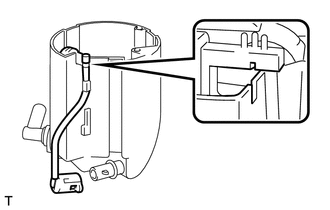

    2. A130453

      Install the jet pump while aligning it to the installation position of the No. 1 fuel sub-tank.

    3. Attach the claw to install the jet pump nozzle.

    4. Push the 2 claws into the holes and install the No. 1 fuel sub-tank to the fuel filter assembly.

    5. Connect the fuel pump harness connector.

    6. Install the No. 2 fuel tank cushion and No. 3 fuel tank cushion to the fuel suction plate sub-assembly, then install them to the No. 1 fuel sub-tank.

    7. Install a new fuel tank pipe setting holder.

      Tip:

      Slightly lower the fuel suction plate sub-assembly to install the fuel tank pipe setting holder.
