TRANSMISSION CONTROL CABLE REMOVAL

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Click here)

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  3. DISCONNECT CABLE FROM POSITIVE BATTERY TERMINAL

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (Click here)

  6. REMOVE RADIATOR SUPPORT OPENING COVER

    Click here

  7. REMOVE NO. 1 ENGINE COVER

    Click here

  8. DRAIN ENGINE COOLANT

    Click here

  9. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Click here

  10. REMOVE BATTERY INSULATOR

  11. REMOVE BATTERY

  12. REMOVE BATTERY TRAY

  13. REMOVE BATTERY CARRIER

    Click here

  14. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH AIR CLEANER HOSE ASSEMBLY

    Click here

  15. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

  16. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Click here

  17. DISCONNECT ENGINE WIRE

    Click here

  18. REMOVE NO. 4 WATER BY-PASS HOSE

    Click here

  19. DISCONNECT COMPRESSOR OUTLET ELBOW

    Click here

  20. DISCONNECT NO. 1 AIR TUBE ASSEMBLY

    Click here

  21. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    (Click here)

  22. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

    C207447

    1. Remove the 3 nuts and front No. 1 floor heat insulator.

  23. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

    1. C207443E04

      Disconnect the control shift cable from the shift lever assembly.

      Table 1. Text in Illustration

      *1

      Control Select Cable

      *2

      Control Shift Cable

    2. Pinch the areas indicated by the arrows and disconnect the control select cable.

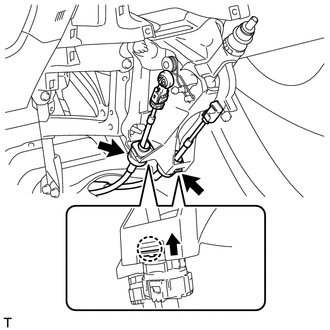

    3. U123189

      Detach the 2 claws and disconnect the transmission control cable assembly.

    4. C300814

      Remove the 2 clips and disconnect the 2 cables from the manual transaxle assembly.

    5. C300815

      Remove the 2 clips and disconnect the 2 cables from the control cable bracket.

    6. C300816

      Remove the bolt and detach the bracket of the transmission control cable assembly.

    7. C207449

      Remove the 2 nuts and detach the grommet of the transmission control cable assembly.
