ENGINE COOLANT TEMPERATURE SENSOR REMOVAL

PROCEDURE

  1. DRAIN ENGINE COOLANT

    Click here

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Click here

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

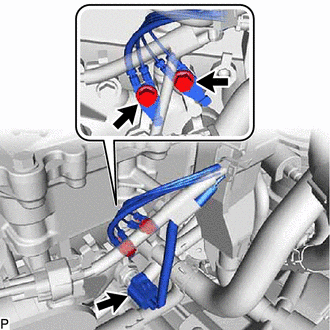

    1. A369687

      Disconnect the engine coolant temperature sensor connector.

    2. Remove the 2 bolts and disconnect the 2 ground wires.

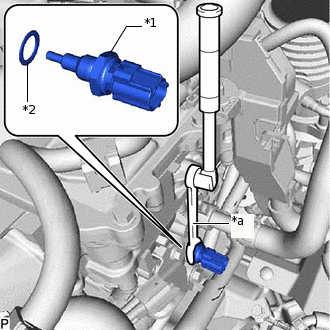

    3. A369688C01

      *1

      Engine Coolant Temperature Sensor

      *2

      Gasket

      *a

      19 mm Ball Joint Lock Nut Wrench

      Using a 19 mm ball joint lock nut wrench, remove the engine coolant temperature sensor and gasket.
