AUTOMATIC TRANSAXLE UNIT DISASSEMBLY

PROCEDURE


  1. REMOVE BREATHER PLUG HOSE


    1. B005B2S

      Using a screwdriver, remove the breather plug hose from the transaxle case sub-assembly.

      Note

      Be careful not to damage the transaxle case.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B005BA5C02
      *1 No. 1 Breather Plug (ATM)
      *2 Breather Plug Hose
      *3 No. 2 Breather Plug (ATM)
      *4 O-ring

      Using a screwdriver, remove the No. 1 breather plug (ATM) and No. 2 breather plug (ATM) from the breather plug hose.

    3. Using a screwdriver, remove the O-ring from the No. 2 breather plug (ATM).

      Note

      Be careful not to damage the No. 2 breather plug (ATM).

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY


    1. B005BDD

      Remove the nut, washer and transmission control shaft lever from the manual valve lever shaft sub-assembly.

    2. B005AQO

      Remove the 2 bolts and park/neutral position switch assembly from the transaxle case sub-assembly.

      Note

      Before removing the park/neutral position switch assembly, remove any dirt or rust on the installation portion of the manual valve lever shaft sub-assembly. Be sure to remove the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be reinstalled correctly.

  3. REMOVE OIL COOLER UNION SUB-ASSEMBLY


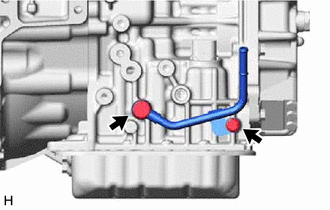

    1. B00584T

      Remove the union bolt and 2 gasket from the transaxle case sub-assembly.

    2. Remove the bolt and oil cooler union sub-assembly from the transaxle case sub-assembly.

  4. REMOVE OIL COOLER TUBE ELBOW

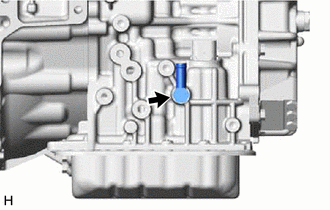

    1. B005999

      Remove the oil cooler tube elbow from the transaxle case sub-assembly.

    2. Remove the O-ring from the oil cooler tube elbow.

  5. REMOVE NO. 1 TRANSAXLE CASE PLUG


    1. B005AGI

      Remove the 6 No. 1 transaxle case plugs from the transaxle case sub-assembly and rear transaxle cover sub-assembly.

    2. Using a screwdriver, remove the 6 O-rings from the 6 No. 1 transaxle case plugs.

  6. REMOVE NO. 2 TRANSAXLE CASE PLUG


    1. B005780

      Using a 6 mm hexagon socket wrench, remove the 3 No. 2 transaxle case plugs from the transaxle case sub-assembly and transaxle housing.

    2. Remove the gasket from each of the 3 No. 2 transaxle case plugs.

  7. SUPPORT AUTOMATIC TRANSAXLE ASSEMBLY


    1. B005AFT

      Support the automatic transaxle assembly with wooden blocks.

  8. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY


    1. B0059W9

      Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transaxle oil pan sub-assembly.

    2. Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the automatic transaxle oil pan sub-assembly.

    3. B0056Y7

      Remove the 18 bolts, automatic transaxle oil pan sub-assembly and automatic transaxle oil pan gasket from the automatic transaxle assembly.

    4. Remove the 2 transmission oil cleaner magnets from the automatic transaxle oil pan sub-assembly.

  9. INSPECT TRANSMISSION OIL CLEANER MAGNET

    Click here

  10. REMOVE VALVE BODY OIL STRAINER ASSEMBLY


    1. B008JMA

      Remove the 2 bolts and valve body oil strainer assembly from the transmission valve body assembly.

    2. B005AI7C07
      *1 O-ring

      Remove the O-ring from the valve body oil strainer assembly.

  11. REMOVE TRANSMISSION VALVE BODY ASSEMBLY


    1. B005AR1

      Remove the 11 bolts and transmission valve body assembly from transaxle case sub-assembly.

      Note


      • When removing the transmission valve body assembly, be careful not to allow the transmission revolution sensor and transaxle case sub-assembly to interfere with each other.

      • Make sure the manual valve does not fall when removing the transmission valve body assembly, as the manual valve is not fixed to the transmission valve body assembly.

  12. REMOVE TRANSAXLE CASE GASKET


    1. B005967

      Remove the 2 transaxle case gaskets from the transaxle case sub-assembly.

  13. REMOVE NO. 1 CHECK VALVE SUB-ASSEMBLY (w/ Stop And Start System)


    1. B008HBJ

      Remove the No. 1 check valve sub-assembly from the transaxle case sub-assembly.

  14. INSPECT INPUT SHAFT SUB-ASSEMBLY END PLAY

    Click here

  15. REMOVE REAR TRANSAXLE COVER SUB-ASSEMBLY


    1. B0057XH

      Remove the refill plug from the rear transaxle cover sub-assembly.

    2. Remove the gasket from the refill plug.

    3. B0057GO

      Remove the 14 bolts from the rear transaxle cover sub-assembly.

    4. Using a brass bar and a hammer, tap on the circumference of the rear transaxle cover sub-assembly to remove the rear transaxle cover sub-assembly from the transaxle case sub-assembly.

    5. B005B7I

      Using a screwdriver, remove the 3 O-rings from the transaxle case sub-assembly.

      Note

      Be careful not to damage the transaxle case sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    6. B0058N2C05
      *1 Thrust Needle Roller Bearing
      *2 Thrust Needle Roller Race

      Remove the thrust needle roller bearing and thrust needle roller race from the rear transaxle cover sub-assembly.

    7. B0059VZC03
      *1 Oil Seal Ring

      Using a screwdriver, remove the 2 oil seal rings from the rear transaxle cover sub-assembly.

      Note

      Be careful not to damage the rear transaxle cover sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    8. B0057FW

      Using a T30 "TORX" socket wrench, remove the 2 "TORX" screws and rear transaxle cover plate from the rear transaxle cover sub-assembly.

    9. B005A09C09
      *1 Needle Roller Bearing
      *a Turn
      *b Hold

      Using SST, remove the needle roller bearing from the rear transaxle cover sub-assembly.

      SST
      09319-60020

  16. REMOVE DIRECT MULTIPLE DISC CLUTCH ASSEMBLY


    1. B005ALXC03
      *1 Direct Multiple Disc Clutch Assembly
      *2 Thrust Needle Roller Bearing

      Remove the direct multiple disc clutch assembly from the transaxle case sub-assembly.

    2. Remove the thrust needle roller bearing from the direct multiple disc clutch assembly.

    3. B0057B8C03
      *1 Intermediate Shaft Oil Seal
      *2 O-ring

      Using a screwdriver, remove the intermediate shaft oil seal from the direct multiple disc clutch assembly.

      Note

      Be careful not to damage the direct multiple disc clutch assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    4. Using a screwdriver, remove the O-ring from the direct multiple disc clutch assembly.

      Note

      Be careful not to damage the direct multiple disc clutch assembly.

      Tech Tips

      Tape the screwdriver tip before use.

  17. REMOVE DIRECT MULTIPLE DISC CLUTCH SNAP RING


    1. B0059F9C02
      *a Protective Tape

      Using a screwdriver, remove the direct multiple disc clutch snap ring from the direct multiple disc clutch assembly.

      Note

      Be careful not to damage the direct multiple disc clutch assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B005AD9

      Remove the No. 2 direct clutch piston from the direct multiple disc clutch assembly.

  18. REMOVE NO. 2 CLUTCH DISC


    1. B0056Y9C05
      *1 No. 2 Clutch Plate
      *2 No. 2 Clutch Disc
      *3 No. 2 Clutch Flange

      Remove the No. 2 clutch flange, 3 No. 2 clutch discs and 3 No. 2 clutch plates from the direct multiple disc clutch assembly.

  19. INSPECT NO. 2 CLUTCH DISC

    Click here

  20. REMOVE REAR PLANETARY SUN GEAR ASSEMBLY


    1. B0059Z6

      Using a snap ring expander, remove the snap ring from the direct multiple disc clutch assembly.

      Note

      Do not expand the snap ring excessively.

    2. B00587T

      Remove the rear planetary sun gear assembly from the direct multiple disc clutch assembly.

    3. B0058FEC04
      *1 Thrust Needle Roller Bearing
      *2 Thrust Needle Roller Race

      Remove the thrust needle roller bearing and thrust needle roller race from the direct multiple disc clutch assembly.

  21. INSPECT REAR PLANETARY SUN GEAR ASSEMBLY

    Click here

  22. REMOVE NO. 1 CLUTCH DISC


    1. B0058D1

      Using 2 screwdrivers, remove the 2 snap rings from the direct multiple disc clutch assembly.

      Note

      Be careful not to damage the direct multiple disc clutch assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B0058VRC05
      *1 No. 1 Clutch Flange
      *2 No. 1 Clutch Plate
      *3 No. 1 Clutch Disc

      Remove the No. 1 clutch flange, 4 No. 1 clutch discs and 4 No. 1 clutch plates from the direct multiple disc clutch assembly.

  23. INSPECT NO. 1 CLUTCH DISC

    Click here

  24. REMOVE TRANSAXLE HOUSING

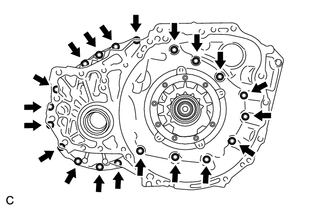

    1. B0059NZ

      Remove the 20 bolts from the transaxle housing.

    2. Using a brass bar and a hammer, tap on the circumference of the transaxle housing to remove the transaxle housing from the transaxle case sub-assembly.

  25. REMOVE COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING OUTER RACE


    1. B0059N3N03

      Using SST, remove the counter driven gear front tapered roller bearing outer race and shim from the transaxle housing.

      SST
      09308-00010

  26. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING OUTER RACE


    1. B005ARGN04

      Using SST, remove the front differential case front tapered roller bearing outer race and shim from the transaxle housing.

      SST
      09308-00010

  27. REMOVE FRONT DRIVE SHAFT OIL SEAL RH (OUTER)


    1. B005ACUN01

      Using SST, remove the front drive shaft oil seal RH (outer) from the transaxle housing.

      SST
      09308-00010

  28. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE


    1. B005B9J

      Remove the bolt, clamp and differential gear lube apply tube from the transaxle housing.

  29. REMOVE FRONT OIL PUMP ASSEMBLY

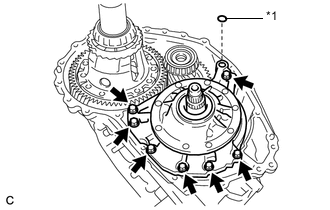

    1. B0058YLC03
      *1 Gasket

      Remove the 7 bolts and front oil pump assembly from the transaxle case sub-assembly.

    2. Remove the gasket from the front oil pump assembly.

    3. B005AMYC04
      *1 Thrust Needle Roller Race

      Remove the thrust needle roller race from the front oil pump assembly.

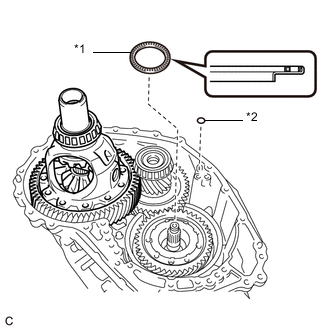

    4. B0059YHC03
      *1 Thrust Needle Roller Bearing
      *2 O-ring

      Remove the thrust needle roller bearing from the counter drive gear nut.

    5. Remove the O-ring from the transaxle case sub-assembly.

  30. REMOVE FRONT OIL PUMP BODY O-RING


    1. B00570J

      Remove the front oil pump body O-ring from the front oil pump body assembly.

  31. REMOVE NO. 3 BRAKE DISC


    1. B0059NRC04
      *1 Snap Ring

      Using a screwdriver, remove the snap ring from the front oil pump assembly.

      Note

      Be careful not to damage the front oil pump assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B0057B4C12
      *1 No. 3 Brake Flange
      *2 No. 3 Brake Plate
      *3 No. 3 Brake Disc

      Remove the 2 No. 3 brake flanges, 3 No. 3 brake discs and 2 No. 3 brake plates from the front oil pump assembly.

  32. INSPECT NO. 3 BRAKE DISC

    Click here

  33. REMOVE UNDERDRIVE PLANETARY GEAR ASSEMBLY


    1. B0057TS

      Remove the underdrive planetary gear assembly from the front oil pump assembly.

  34. REMOVE NO. 3 BRAKE HUB


    1. B00588A

      Remove the No. 3 brake hub from the underdrive planetary gear assembly.

    2. B005B0EC09
      *1 Thrust Needle Roller Race
      *2 Thrust Needle Roller Bearing

      Remove the thrust needle roller bearing and thrust needle roller race from the underdrive planetary gear assembly.

  35. REMOVE PLANETARY SUN GEAR SUB-ASSEMBLY


    1. B0057U6C03
      *1 Planetary Sun Gear Sub-assembly
      *2 Underdrive Planetary Gear Assembly
      *3 Snap Ring

      While expanding the snap ring with snap ring pliers, remove the planetary sun gear sub-assembly from the underdrive planetary gear assembly.

    2. Remove the snap ring from the underdrive planetary gear assembly.

  36. INSPECT UNDERDRIVE PLANETARY GEAR ASSEMBLY

    Click here

  37. INSPECT PLANETARY SUN GEAR SUB-ASSEMBLY

    Click here

  38. REMOVE INPUT SHAFT SUB-ASSEMBLY


    1. B005A1I

      Remove the input shaft sub-assembly from the front oil pump assembly.

    2. B0058NVC03
      *1 Thrust Needle Roller Race
      *2 Thrust Needle Roller Bearing
      *3 Input Shaft Sub-assembly
      *4 Input Shaft Oil Seal Ring

      Remove the thrust needle roller bearing and thrust needle roller race from the input shaft sub-assembly.

    3. Using a screwdriver, remove the 3 input shaft oil seal rings from the input shaft sub-assembly.

      Note

      Be careful not to damage the input shaft sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

  39. REMOVE UNDERDRIVE PLANETARY SUN GEAR


    1. B0056Z9C03
      *1 Underdrive Planetary Sun Gear
      *2 Thrust Needle Roller Bearing

      Remove the underdrive planetary sun gear from the front oil pump assembly.

    2. Remove the thrust needle roller bearing from the front oil pump assembly.

  40. REMOVE NO. 1 BRAKE DISC


    1. B0059WKC07
      *1 Snap Ring
      *2 Brake Snap Ring Stopper

      Using a screwdriver, remove the 2 snap rings and brake snap ring stopper from the front oil pump assembly.

      Note

      Be careful not to damage the front oil pump assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B005A5XC03
      *1 No. 1 Brake Flange
      *2 No. 1 Brake Plate
      *3 No. 1 Brake Disc

      Remove the No. 1 brake flange, 4 No. 1 brake discs and 4 No. 1 brake plates from the front oil pump assembly.

  41. INSPECT NO. 1 BRAKE DISC

    Click here

  42. REMOVE 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY


    1. B005884

      Remove the 3 2nd brake piston return spring sub-assemblies from the front oil pump assembly.

  43. INSPECT 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY

    Click here

  44. REMOVE NO. 1 BRAKE PISTON


    1. B005792

      While holding the front oil pump assembly by hand, apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the front oil pump assembly to remove the No. 1 brake piston.

    2. B005A9SC05
      *1 O-ring

      Using a screwdriver, remove the 2 O-rings from the No. 1 brake piston.

      Note

      Be careful not to damage the No. 1 brake piston.

      Tech Tips

      Tape the screwdriver tip before use.

  45. REMOVE FRONT DIFFERENTIAL CASE

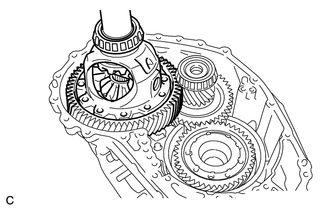

    1. B00589L

      Remove the front differential case from the transaxle case sub-assembly.

  46. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING INNER RACE

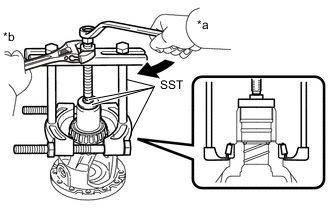

    1. B0058KLC02
      *a Turn
      *b Hold

      Using SST, remove the front differential case front tapered roller bearing inner race from the front differential case.

      SST
      09950-00020
      09950-00030
      09950-40011   ( 09957-04010 )
      09950-60010   ( 09951-00480 )

  47. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING INNER RACE


    1. B0057ZMC03
      *a Turn
      *b Hold

      Using SST, remove the front differential case rear tapered roller bearing inner race from the front differential case.

      SST
      09950-40011   ( 09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011 )

  48. REMOVE COUNTER DRIVE GEAR NUT


    1. B0058LEN05

      Using SST and a hammer, release the staked part of the front planetary gear assembly.

      SST
      09930-00010

      Note


      • Do not grind the tip of SST with a grinder or other device.

      • Completely loosen the staked part of the counter drive gear nut when removing it.

      • Do not damage the threads of the front planetary gear assembly.

    2. B0059YSN02

      Turn the manual valve lever shaft sub-assembly 2 notches counterclockwise to set it to the P position as shown in the illustration.

    3. B0057IGN05

      Using SST, remove the counter drive gear nut from the front planetary gear assembly.

      SST
      09387-00130

  49. REMOVE COUNTER DRIVEN GEAR


    1. B0057SSN02

      Turn the manual valve lever shaft sub-assembly 2 notches clockwise to set it to the N position as shown in the illustration.

    2. B0059K1

      Remove the counter driven gear from the transaxle case sub-assembly.

  50. REMOVE COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING


    1. B00596UC03
      *a Turn
      *b Hold

      Using SST, remove the counter driven gear front tapered roller bearing from the counter driven gear.

      SST
      09950-00020
      09950-00030
      09950-60010   ( 09951-00400 )

  51. REMOVE COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING


    1. B005AKTC03
      *a Turn
      *b Hold

      Using SST, remove the counter driven gear rear tapered roller bearing from the counter driven gear.

      SST
      09950-40011   ( 09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04071, 09957-04010, 09958-04011 )
      09950-60010   ( 09951-00320 )

  52. REMOVE PAWL SHAFT CLAMP


    1. B0058NU

      Remove the bolt and pawl shaft clamp from the transaxle case sub-assembly.

  53. REMOVE PAWL STOPPER PLATE


    1. B005B4S

      Remove the 2 bolts and pawl stopper plate from the transaxle case sub-assembly.

  54. REMOVE PARKING LOCK SLEEVE


    1. B00585D

      Remove the parking lock sleeve from the transaxle case sub-assembly.

  55. REMOVE PARKING LOCK PAWL


    1. B005AJAC01
      *1 Parking Lock Pawl Shaft
      *2 Parking Lock Pawl
      *3 Spring
      *4 Parking Lock Pawl Pin

      Remove the spring, parking lock pawl pin, parking lock pawl shaft and parking lock pawl from the transaxle case sub-assembly.

  56. REMOVE COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING OUTER RACE


    1. B005AGYN03

      Using SST, remove the counter driven gear rear tapered roller bearing outer race from the transaxle case sub-assembly.

      SST
      09308-00010

  57. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING OUTER RACE


    1. B005B1ON05

      Using SST, remove the front differential case rear tapered roller bearing outer race from the transaxle case.

      SST
      09308-00010

  58. REMOVE FRONT DRIVE SHAFT OIL SEAL LH


    1. B0059W5N03

      Using SST, remove the front drive shaft oil seal LH from the transaxle case sub-assembly.

      SST
      09308-00010

  59. REMOVE ONE-WAY CLUTCH ASSEMBLY


    1. B005B4LC02
      *a Protective Tape

      Using a screwdriver, remove the snap ring from the transaxle case sub-assembly.

      Note

      Be careful not to damage the transaxle case sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B00580NC08
      *1 One-way Clutch Assembly with Planetary Ring Gear
      *2 Thrust Needle Roller Bearing

      Remove the one-way clutch assembly with planetary ring gear from the transaxle case sub-assembly.

    3. Remove the thrust needle roller bearing from the front planetary gear assembly.

  60. INSPECT ONE-WAY CLUTCH ASSEMBLY

    Click here

  61. REMOVE PLANETARY RING GEAR


    1. B005979C08
      *1 One-way Clutch Assembly
      *2 Outer Race Retainer
      *3 Planetary Ring Gear

      Remove the planetary ring gear from the one-way clutch assembly.

    2. Remove the outer race retainer from the one-way clutch assembly.

  62. REMOVE PLANETARY RING GEAR FLANGE


    1. B0059Q4C12
      *1 Snap Ring
      *2 Planetary Ring Gear Flange
      *3 Planetary Ring Gear

      Using a screwdriver, remove the snap ring from the planetary ring gear.

      Note

      Be careful not to damage the planetary ring gear and planetary ring gear flange.

      Tech Tips

      Tape the screwdriver tip before use.

    2. Remove the planetary ring gear flange from the planetary ring gear.

  63. REMOVE NO. 2 BRAKE DISC


    1. B005AWKC02
      *a Protective Tape

      Using a screwdriver, remove the snap ring from the transaxle case sub-assembly.

      Note

      Be careful not to damage the transaxle case sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B00574UC07
      *1 No. 2 Brake Flange
      *2 No. 2 Brake Plate
      *3 No. 2 Brake Disc

      Remove the No. 2 brake flange, 5 No. 2 brake discs and 5 No. 2 brake plates from the transaxle case sub-assembly.

  64. INSPECT NO. 2 BRAKE DISC

    Click here

  65. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY


    1. B0058QDC02
      *a Protective Tape

      Using a screwdriver, remove the snap ring from the transaxle case sub-assembly.

      Note

      Be careful not to damage the transaxle case sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B00574L

      Remove the 1st and reverse brake return spring sub-assembly from the transaxle case sub-assembly.

  66. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

    Click here

  67. REMOVE NO. 2 BRAKE PISTON


    1. B0057FU

      Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the ATF hole to remove the No. 2 brake piston from the transaxle case sub-assembly.

    2. B005BCPC05
      *1 O-ring

      Using a screwdriver, remove the 2 O-rings from the No. 2 brake piston.

      Note

      Be careful not to damage the No. 2 brake piston.

      Tech Tips

      Tape the screwdriver tip before use.

  68. REMOVE FRONT PLANETARY GEAR ASSEMBLY


    1. B00595TN09

      Using SST and a press, remove the front planetary gear assembly from the transaxle case sub-assembly.

      SST
      09950-60010   ( 09951-00580 )
      09950-70010   ( 09951-07100 )

  69. INSPECT FRONT PLANETARY GEAR ASSEMBLY

    Click here

  70. REMOVE COUNTER DRIVE GEAR

    Note

    Perform this procedure only when the counter drive gear bearing or transaxle case sub-assembly is replaced.


    1. B0059ZRN03

      Using SST and a press, remove the counter drive gear and bearing inner race (rear side) from the transaxle case sub-assembly.

      SST
      09950-60020   ( 09951-00710 )
      09950-70010   ( 09951-07100 )
    2. B0059Z0

      As shown in the illustration, tighten 3 service bolts evenly to make a clearance of approximately 20.0 mm (0.787 in.) between the counter drive gear and bearing inner race (front side).

    3. B005BCFC04
      *a Turn
      *b Hold

      Using SST, remove the bearing inner race (front side) from the counter drive gear.

      SST
      09950-00020
      09950-00030
      09950-60020   ( 09951-00710 )

  71. REMOVE NO. 3 BRAKE PISTON


    1. B0059VD

      Using a screwdriver, remove the snap ring from the transaxle case sub-assembly.

      Note

      Be careful not to damage the transaxle case sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.

    2. B005A6MC01
      *1 Brake Piston Return Spring
      *2 No. 3 Brake Piston

      Remove the brake piston return spring from the transaxle case sub-assembly.

    3. Remove the No. 3 brake piston from the transaxle case sub-assembly.

  72. REMOVE MANUAL DETENT SPRING SUB-ASSEMBLY


    1. B0058QT

      Remove the bolt, cover and manual detent spring sub-assembly from the transaxle case sub-assembly.

  73. REMOVE PARKING LOCK ROD SUB-ASSEMBLY


    1. B005816

      Remove the parking lock rod sub-assembly from the manual valve lever shaft sub-assembly.

      Tech Tips

      Align the protrusions with the notches on the manual valve lever shaft sub-assembly to remove the parking lock rod sub-assembly.

  74. REMOVE MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY


    1. B0058JD

      Using needle-nose pliers, remove the manual valve lever shaft retainer spring from the manual valve lever shaft sub-assembly.

    2. B0058DR

      Remove the manual valve lever shaft sub-assembly from the transaxle case sub-assembly.

  75. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL


    1. B0059ADC02
      *a Protective Tape

      Using a screwdriver, remove the manual valve lever shaft oil seal from the transaxle case sub-assembly.

      Note

      Be careful not to damage the transaxle case transaxle case sub-assembly.

      Tech Tips

      Tape the screwdriver tip before use.
