BRAKE BOOSTER(for RHD) COMPONENTS

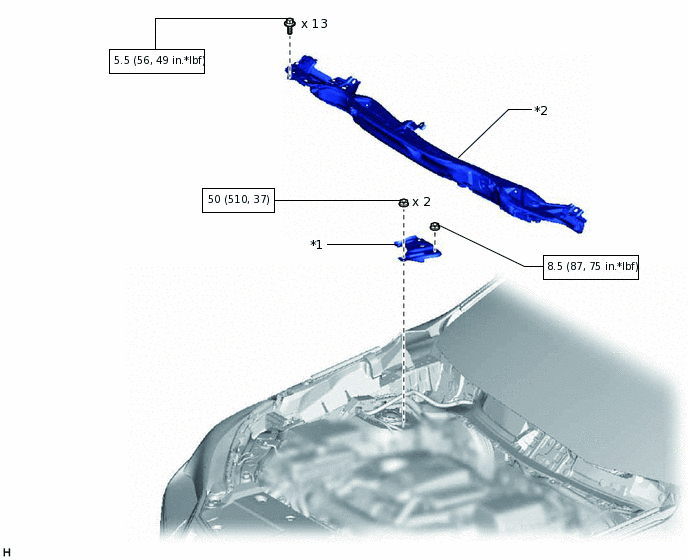

ILLUSTRATION
*1 |
COWL BODY MOUNTING REINFORCEMENT RH |
*2 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

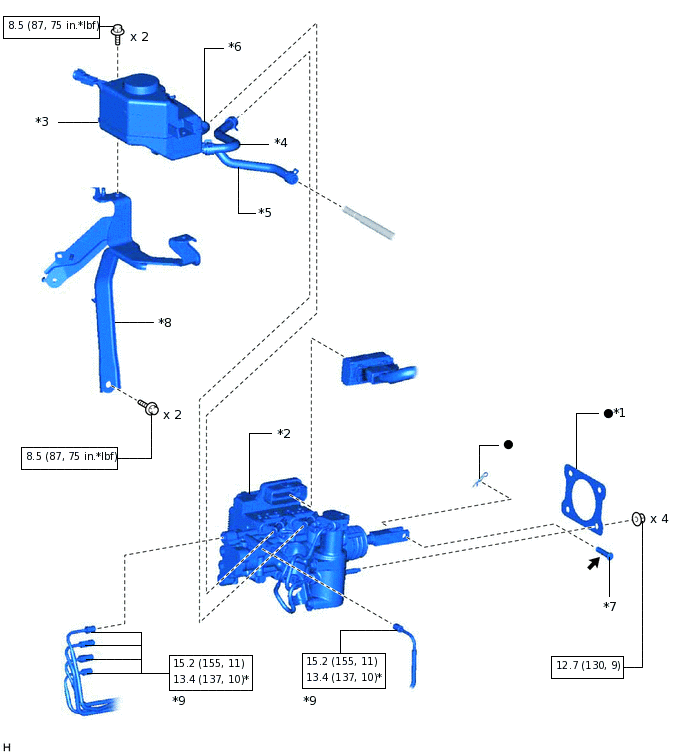

ILLUSTRATION
*1 |
BRAKE BOOSTER GASKET |
*2 |
BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
*3 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
*4 |
NO. 1 RESERVOIR HOSE |
*5 |
NO. 2 BRAKE ACTUATOR HOSE |
*6 |
NO. 2 RESERVOIR HOSE |
*7 |
PUSH ROD PIN |
*8 |
RESERVOIR BRACKET |
*9 |
BRAKE TUBE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with union nut wrench |
● |
Non-reusable part |
 |
Lithium soap base glycol grease |
