SHIFT LEVER POSITION SENSOR INSPECTION
PROCEDURE
INSPECT SHIFT LEVER POSITION SENSOR
-

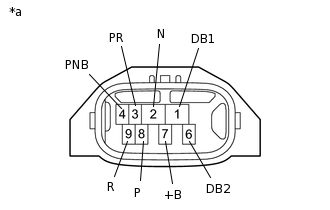

*a
Component without harness connected
(Shift Lever Position Sensor)
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection
Condition
Specified Condition
7 (+B) - 3 (PR)
Shift lever in P
Below 1 Ω
7 (+B) - 4 (PNB)
Below 1 Ω
7 (+B) - 8 (P)
Below 1 Ω
7 (+B) - 1 (DB1), 2 (N), 6 (DB2) and 9 (R)
10 kΩ or higher
7 (+B) - 3 (PR)
Shift lever in R
Below 1 Ω
7 (+B) - 9 (R)
Below 1 Ω
7 (+B) - 1 (DB1), 2 (N), 4 (PNB), 6 (DB2) and 8 (P)
10 kΩ or higher
7 (+B) - 2 (N)
Shift lever in N
Below 1 Ω
7 (+B) - 4 (PNB)
Below 1 Ω
7 (+B) - 1 (DB1), 3 (PR), 6 (DB2), 8 (P) and 9 (R)
10 kΩ or higher
7 (+B) - 1 (DB1)
Shift lever in D
Below 1 Ω
7 (+B) - 6 (DB2)
Below 1 Ω
7 (+B) - 2 (N), 3 (PR), 4 (PNB), 8 (P) and 9 (R)
10 kΩ or higher
7 (+B) - 1 (DB1)
Shift lever in B
Below 1 Ω
7 (+B) - 4 (PNB)
Below 1 Ω
7 (+B) - 6 (DB2)
Below 1 Ω
7 (+B) - 2 (N), 3 (PR), 8 (P) and 9 (R)
10 kΩ or higher
If the result is not as specified, replace the shift lever position sensor.
-
