INSTRUMENT PANEL SPEAKER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE NO. 2 SPEAKER HOLE COVER

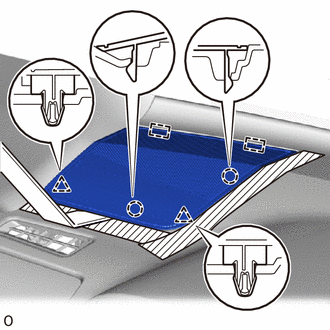

    1. B337787C02
      V100155

      Protective Tape

      Apply protective tape as shown in the illustration.

    2. Using moulding remover B, detach the 2 clips, 2 claws and 2 guides and remove the No. 2 speaker hole cover.

  2. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

    Note:

    Do not touch the cone part of the speaker.

    1. Remove the 2 bolts and front No. 2 speaker assembly.

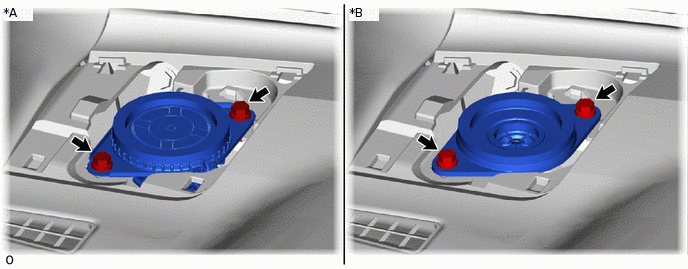

      B335783C01

      *A

      w/ Woofer

      *B

      w/o Woofer

    2. Disconnect the connector.
