TIRE AND WHEEL SYSTEM


  1. OUTLINE


    1. 2 sizes of tires and 5 types of aluminum wheels are available.

    2. The 20-inch aluminum wheel has a tiered outer rim and plastic inserts.

    3. A puncture repair kit is available.

  2. SPECIFICATION


    1. 18-inch aluminum wheel

      Tire Size 235/65R18
      Wheel Size 18 X 8J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 30 (1.2)
      Material Aluminum
      Wheel Cap Center Ornament

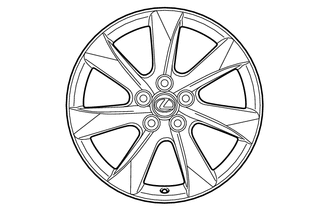

      Wheel Design A01R7Y3

    2. 20-inch aluminum wheel

      Tire Size 235/55R20
      Wheel Size 20 X 8J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 30 (1.2)
      Material Aluminum
      Wheel Cap Center Ornament

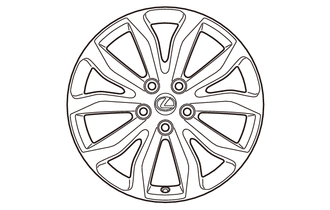

      Wheel Design A01R7QW
      Tire Size 235/55R20
      Wheel Size 20 X 8J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 30 (1.2)
      Material Aluminum
      Wheel Cap Center Ornament

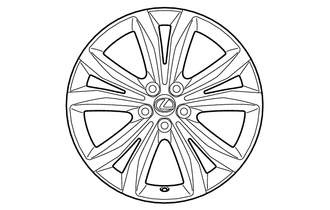

      Wheel Design A01R8KY
      Tire Size 235/55R20
      Wheel Size 20 X 8J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 30 (1.2)
      Material Aluminum
      Wheel Cap Center Ornament

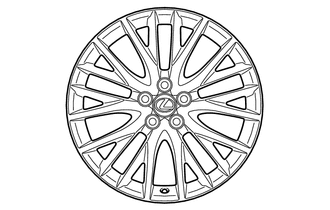

      Wheel Design A01R7M3

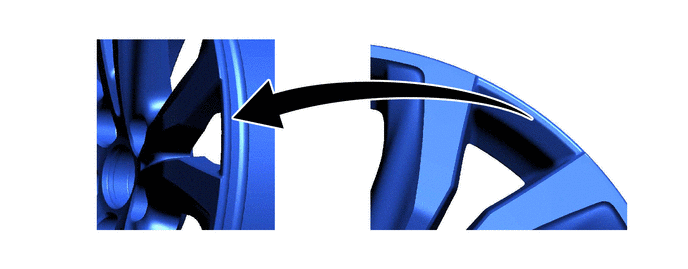

      1. Tiered spokes which include the outermost portion are used to accentuate the spokes.

        A01R80L

        Note

        In case of changing a tire using equipment, make sure that the rim does not interfere,since tiered spokes which include the outer most portion are used for the wheels.

    3. 20-inch aluminum wheel

      Tire Size 235/55R20
      Wheel Size 20 X 8J
      Pitch Circle Diameter mm (in.) 114.3 (4.5)
      Inset mm (in.) 30(1.2)
      Material Aluminum
      Wheel Cap Center Ornament

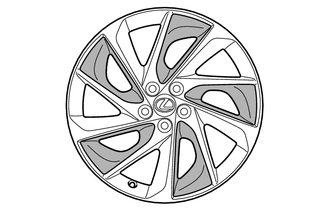

      Wheel Design A01R8I5

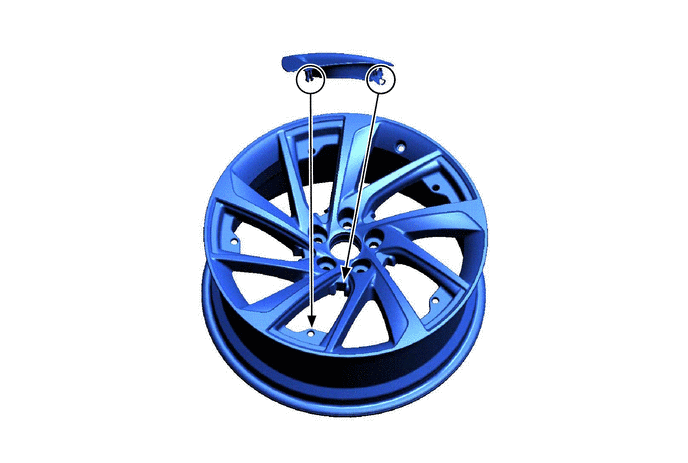

      1. By using plastic for the inserts, the design has been improved and weight has been reduced.

        A01R877

    4. Puncture Repair Kit

      Item Specification
      Usable Temperature Range °C (°F) -40 to 60 (-40 to 140)
      Maximum Current Consumption A 10
      Sealant Repair Seal Liquid Material

      Natural Rubber, Resin, Surfactant, Water

      1.3 Propanediol
      Quantity ml (US qts, Imp.qts) 500 (0.5, 0.4)
      Expiration Date Displayed on Sealant Bottle

  3. MAIN FEATURES


    1. Puncture Repair Kit


      1. A puncture repair kit, which is used to feed repair seal liquid into a flat tire to temporarily repair the puncture, is provided. Therefore, a spare tire is no longer needed, resulting in an increase in the luggage compartment capacity.

      2. The puncture repair kit can be used in an emergency to repair a tire that has been punctured by a nail, screw, etc. piercing the tread part of the tire.

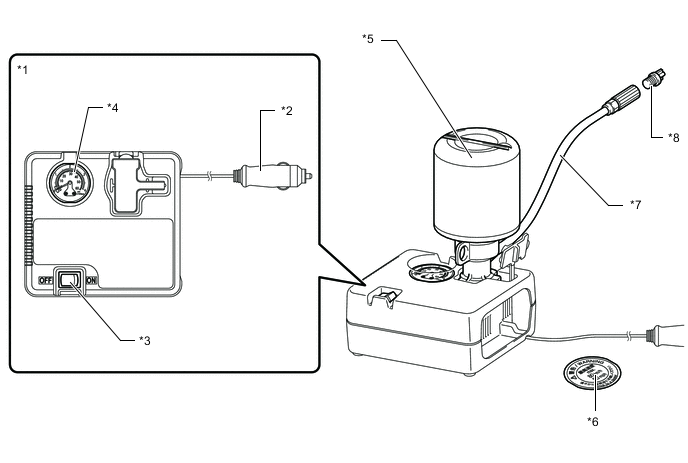

        A01R7UCC07
        *1 Air Compressor Assembly *2 Power Cord
        *3 On/Off Switch *4 Pressure Gauge
        *5 Repair Sealant Bottle *6 Speed Restriction Sticker
        *7 Hose *8 Tire Attachment
