IGNITION COIL AND SPARK PLUG REMOVAL

PROCEDURE

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Click here

  2. REMOVE IGNITION COIL ASSEMBLY

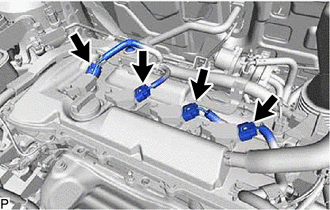

    1. A369683

      Disconnect the 4 ignition coil assembly connectors.

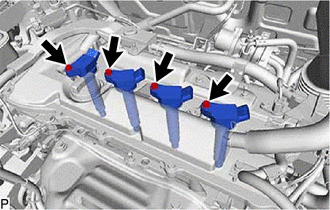

    2. A369684

      Remove the 4 bolts and 4 ignition coil assemblies.

      Note:

      Replace with a new part if it is dropped or if it receives a strong impact.

  3. REMOVE SPARK PLUG

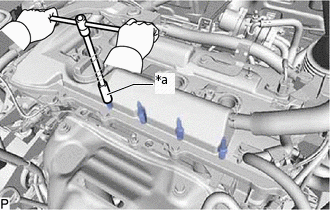

    1. A369685C01

      *a

      16 mm Spark Plug Wrench

      Using a 16 mm spark plug wrench, remove the 4 spark plugs.

      Note:

      Replace with a new part if it is dropped or if it receives a strong impact.
