BLOWER UNIT REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE AIR CONDITIONER UNIT ASSEMBLY

    Click here

  2. REMOVE BLOWER ASSEMBLY

    1. E265940

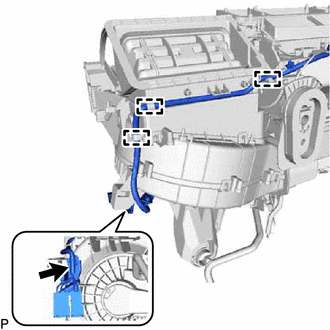

      Remove the screw and disconnect the connector bracket and wire harness.

    2. Disconnect the connector.

      E269742

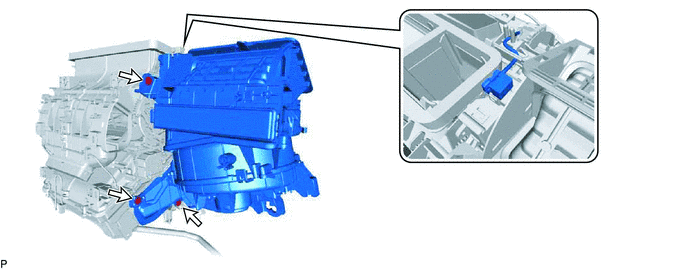

    3. Remove the 3 screws and blower assembly.

  3. REMOVE AIR FILTER CASE

    1. E265977

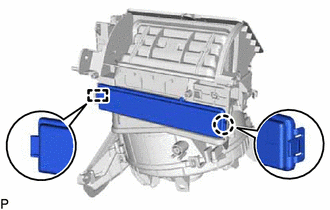

      Detach the claw and guide, and remove the air filter case.

  4. REMOVE CLEAN AIR FILTER

    1. E265978

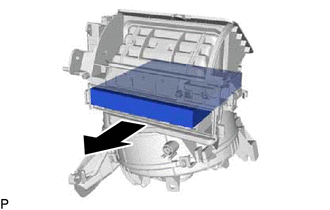

      Remove the clean air refiner as shown in the illustration.
