CAMSHAFT COMPONENTS

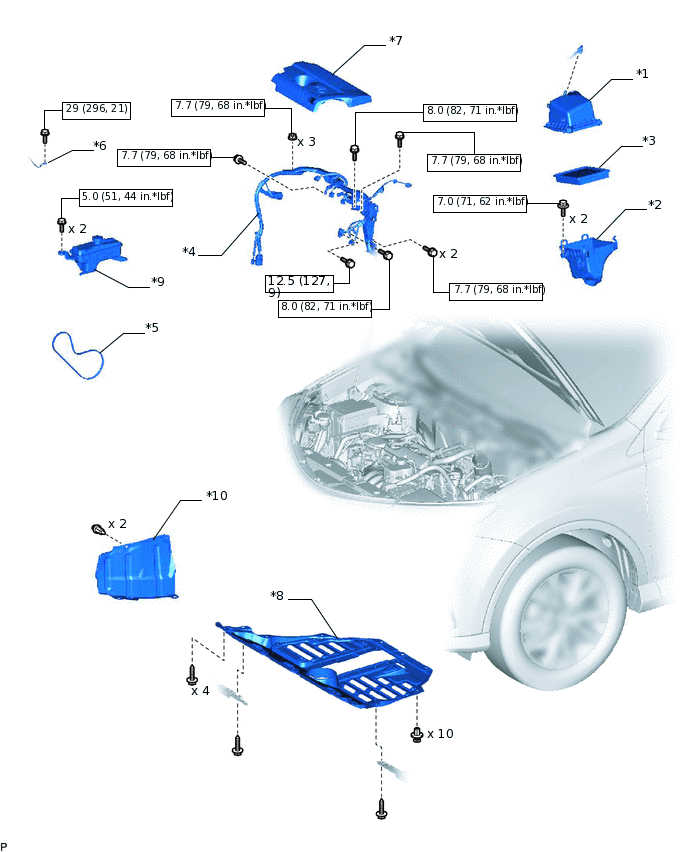

ILLUSTRATION
*1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*4 |
ENGINE WIRE |
*5 |
FAN AND GENERATOR V BELT |
*6 |
GROUND WIRE |
*7 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*8 |
NO. 1 ENGINE UNDER COVER |
*9 |
RADIATOR RESERVOIR ASSEMBLY |
*10 |
REAR ENGINE UNDER COVER RH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

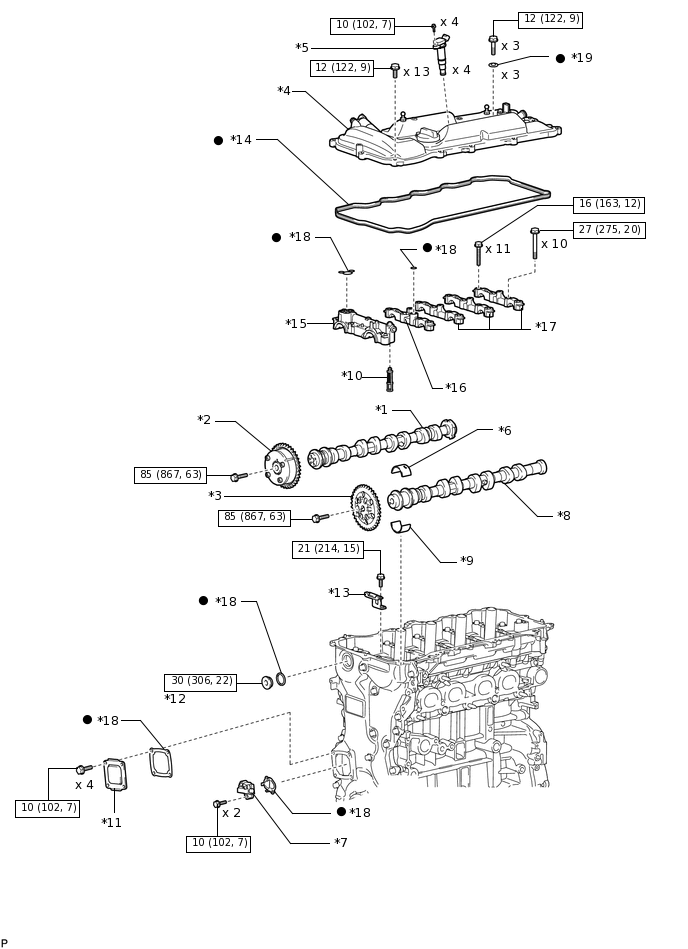

ILLUSTRATION
*1 |
CAMSHAFT |
*2 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*3 |
CAMSHAFT TIMING SPROCKET |
*4 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*5 |
IGNITION COIL ASSEMBLY |
*6 |
NO. 1 CAMSHAFT BEARING |
*7 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*8 |
NO. 2 CAMSHAFT |
*9 |
NO. 2 CAMSHAFT BEARING |
*10 |
OIL CONTROL VALVE FILTER |
*11 |
TIMING CHAIN COVER PLATE |
*12 |
TIMING CHAIN COVER TIGHT PLUG |
*13 |
TIMING CHAIN GUIDE |
*14 |
CYLINDER HEAD COVER GASKET |
*15 |
NO. 1 CAMSHAFT BEARING CAP |
*16 |
NO. 2 CAMSHAFT BEARING CAP |
*17 |
NO. 3 CAMSHAFT BEARING CAP |
*18 |
GASKET |
*19 |
SEAL WASHER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
