MANUAL TRANSAXLE OIL ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT TRANSAXLE OIL

    1. Stop the vehicle on a level surface.

    2. Remove the engine under cover (Click here).

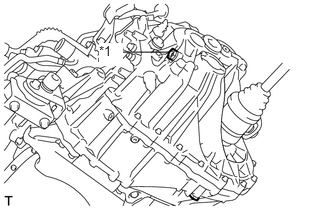

    3. C197632E04

      Remove the transmission filler plug and gasket.

      Tip:

      Perform this step through the service hole in the engine under cover.

      Table 1. Text in Illustration

      *1

      Filler Plug
    4. D025304

      Check that the oil level is within 5 mm (0.197 in.) from the bottom of the transmission filler plug opening.

      Note:

      An excessively large or small amount of oil may cause problems.

    5. Check for oil leakage when the oil level is low.

    6. Install a new gasket and the transmission filler plug.

      39 N*m

      400 kgf*cm

      29 ft.*lbf

    7. Install the engine under cover (Click here).
