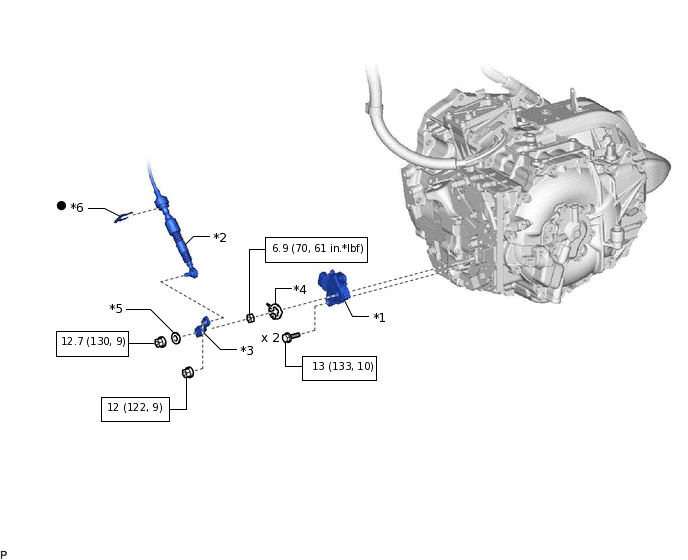

SHIFT LEVER POSITION SENSOR COMPONENTS

*1	NO. 1 ENGINE UNDER COVER	-	-

*1	SHIFT LEVER POSITION SENSOR	*2	TRANSMISSION CONTROL CABLE ASSEMBLY
*3	CONTROL SHAFT LEVER	*4	LOCK PLATE
*5	WASHER	*6	CLIP
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*1

SHIFT LEVER POSITION SENSOR

*2

TRANSMISSION CONTROL CABLE ASSEMBLY

*3

CONTROL SHAFT LEVER

*4

LOCK PLATE

*5

WASHER

*6

CLIP

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
