SEAT HEATER SYSTEM

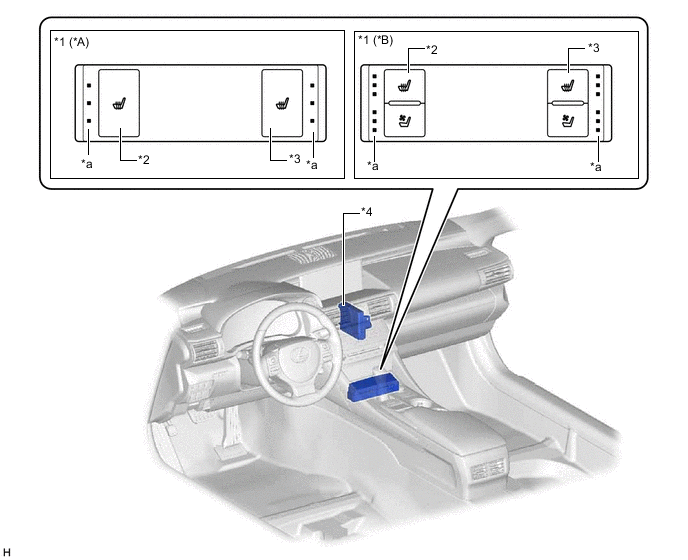

Figure 1. LHD Models
| *A | Models without Climate Control Seat System | *B | Models with Climate Control Seat System |
| *1 | REFRESHING SEAT SWITCH | *2 | FRONT SEAT HEATER SWITCH LH |
| *3 | FRONT SEAT HEATER SWITCH RH | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *a | INDICATOR LIGHT | - | - |

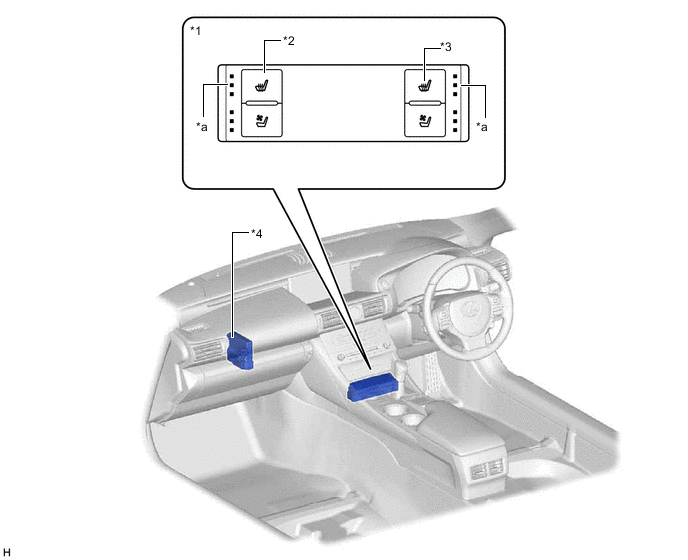

Figure 2. RHD Models
| *1 | REFRESHING SEAT SWITCH | *2 | FRONT SEAT HEATER SWITCH LH |
| *3 | FRONT SEAT HEATER SWITCH RH | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *a | INDICATOR LIGHT | - | - |

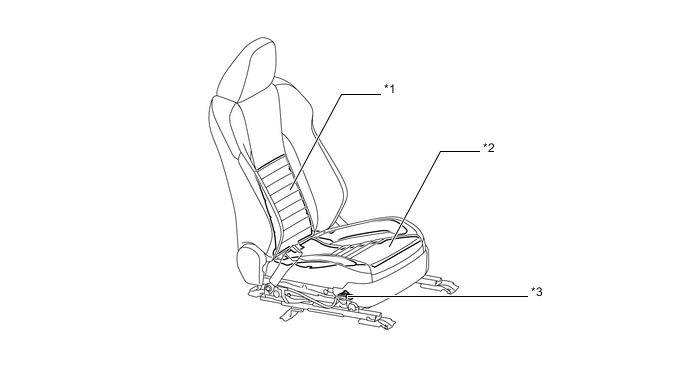

| *1 | FRONT SEATBACK HEATER (FRONT SEATBACK PAD WITH COVER) | *2 | FRONT SEAT CUSHION HEATER (FRONT SEAT CUSHION PAD WITH COVER) |
| *3 | SEAT HEATER CONTROL SUB-ASSEMBLY | - | - |
