FRONT WIPER MOTOR REMOVAL

PROCEDURE

  1. REMOVE WINDSHIELD WIPER ARM COVER

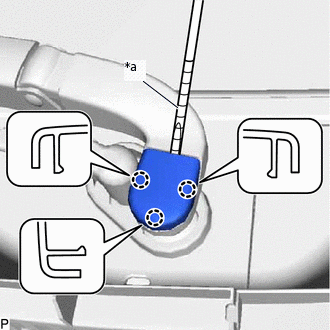

    1. E295205C01

      *a

      Protective Tape

      Using a screwdriver, disengage the 3 claws and remove the windshield wiper arm cover.

      Tip:

      Tape the screwdriver tip before use.

  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY

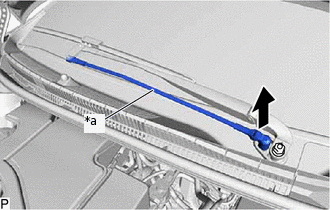

    1. E295181C01

      *a

      Secondary Arm Rod

      Disconnect the secondary arm rod as shown in the illustration.

    2. E295182

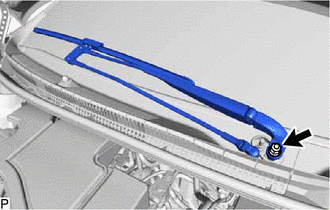

      Remove the nut and front wiper arm and blade assembly.

  3. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

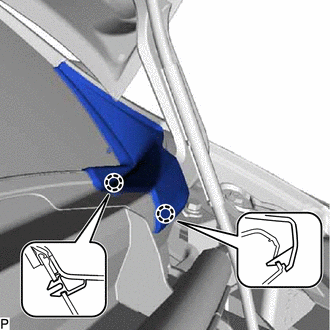

    1. E295206

      Disengage the 2 claws.

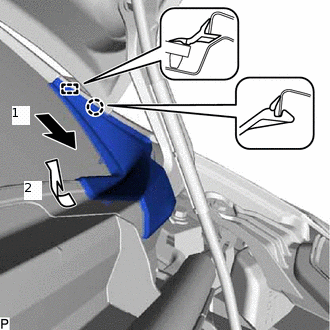

    2. E295185N01

      Disengage the claw and guide and remove the front fender to cowl side seal LH as indicated by the arrows, in the order shown in the illustration.

  4. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    Tip:

    Use the same procedure as for the LH side.

  5. REMOVE FRONT NO. 2 SIDE AIR GUIDE (w/ Side Air Guide)

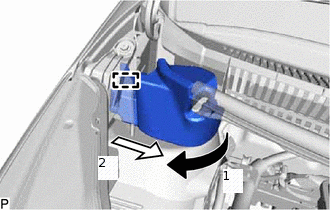

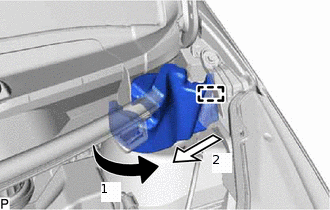

    1. E295183N01

      Disengage the guide and remove the front No. 2 side air guide as indicated by the arrows, in the order shown in the illustration.

  6. REMOVE FRONT SIDE AIR GUIDE (w/ Side Air Guide)

    1. E295203N01

      Disengage the guide and remove the front side air guide as indicated by the arrows, in the order shown in the illustration.

  7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

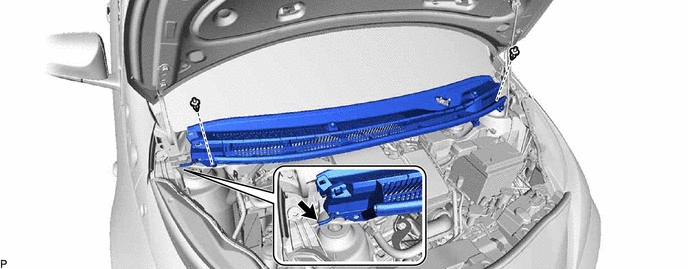

    1. Remove the 2 clips.

      E295187

    2. Disconnect the washer hose.

    3. Using a screwdriver, disengage the 5 claws and 3 guides as shown in the illustration.

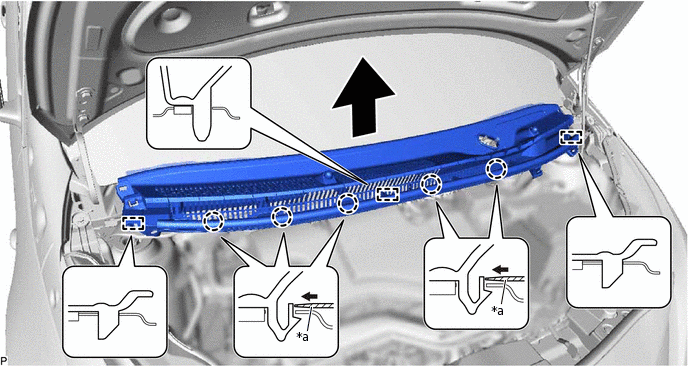

      E295188C01

      *a

      Protective Tape

      -

      -
      Tip:

      Tape the screwdriver tip before use.

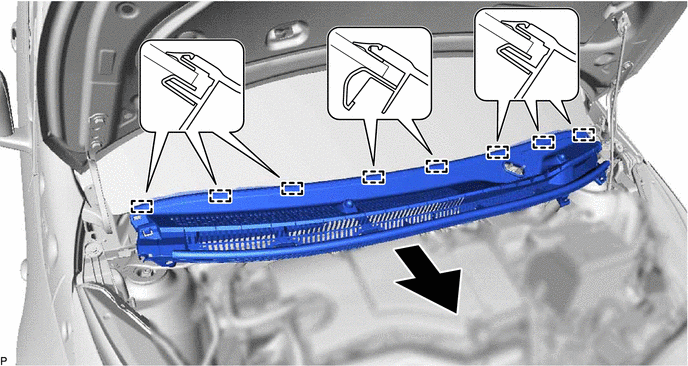

    4. Disengage the 8 guides and remove the cowl top ventilator louver sub-assembly as shown in the illustration.

      E295190

  8. REMOVE FRONT WIPER MOTOR AND LINK ASSEMBLY

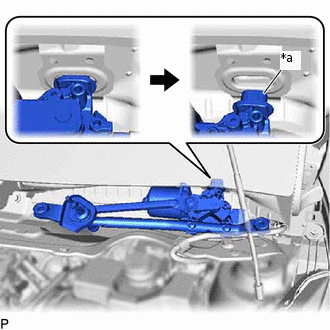

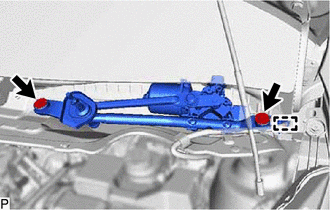

    1. E295192

      Disengage the clamp.

    2. Remove the 2 bolts.

    3. E295193C01

      *a

      Motor Grommet

      Disengage the motor grommet as shown in the illustration and remove the front wiper motor and link assembly.

      Note:

      Be careful not to damage the windshield glass when removing the front wiper motor and link assembly.

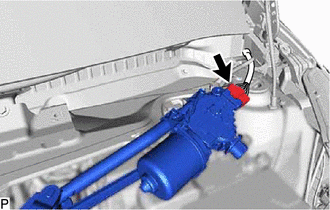

    4. E295195

      Disconnect the connector.
