TIRE AND WHEEL TYPE SYSTEM


  1. OUTLINE


    1. 2 sizes of tire are available.

    2. 2 types of aluminum disc wheel are available.

    3. This kit first feeds repair sealant directly into a punctured tire, and then refills it with air using an air compressor.

  2. SPECIFICATION


    1. Tire and wheel

      Tire Size 205/55R16 215/45R17
      Wheel Size 16 x 6 1/2J 17 x 7J
      Material Aluminum Aluminum
      Pitch Circle Diameter mm (in.) 100 (3.9) ←
      Inset mm (in.) 48 (1.9) ←
      Wheel Cap Center Ornament ←

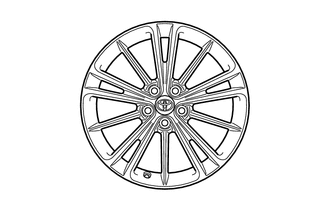

      Wheel Design A004GQV A004GK9

    2. Tire Repair Set

      Item Specification
      Usable Temperature Range °C (°F) -40 to 70 (-40 to 158)
      Maximum Current Consumption A 10
      Sealant Repair Seal Liquid Material Natural Rubber, Terpene Polymer, 1, 3-Propanediol
      Quantity ml (US qts, Imp. qts) 400 (0.42, 0.35)
      Expiration Date Displayed on Sealant Bottle

  3. MAIN FEATURES


    1. Tire Repair Set


      1. The tire repair set can be used in an emergency to repair a tire that has had its tread punctured by a nail, screw etc.

        A004GKEE02
        Text in Illustration
        *1 Repair Sealant Bottle *2 Filling Hose
        *3 Extraction Hose *4 Valve Core Remover
        *5 Valve Core *6 Power Plug
        *7 Hose *8 Air Compressor Switch
        *9 Air Pressure Gauge *10 Easy Quick Reference Sheet
        *11 Plastic Bag *12 Sealant Applied Sticker
        *13 Speed Restriction Sticker *14 Case
