WASHER NOZZLE(for Rear Side) INSTALLATION

PROCEDURE

1. INSTALL REAR WASHER NOZZLE SUB-ASSEMBLY

   1. Connect the washer hose.

   2.

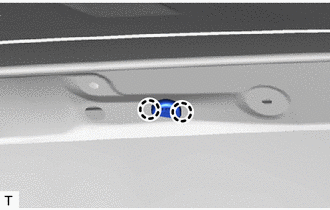

      Attach the 2 claws to install the rear washer nozzle sub-assembly.

2. INSTALL REAR WASHER HOSE GROMMET

   1. Install the washer grommet and connect the washer hose.

3. INSTALL REAR SPOILER

   Click here
