SFI SYSTEM


  1. FUNCTION


    1. The Variable Valve Timing-intelligent (VVT-i) system is designed to control the intake camshafts within a range of 50° (of crankshaft angle) to provide valve timing that is optimally suited to the engine operating conditions. This improves torque in all the speed ranges as well as increasing fuel economy and reducing exhaust emissions.

      A01KXM5C01

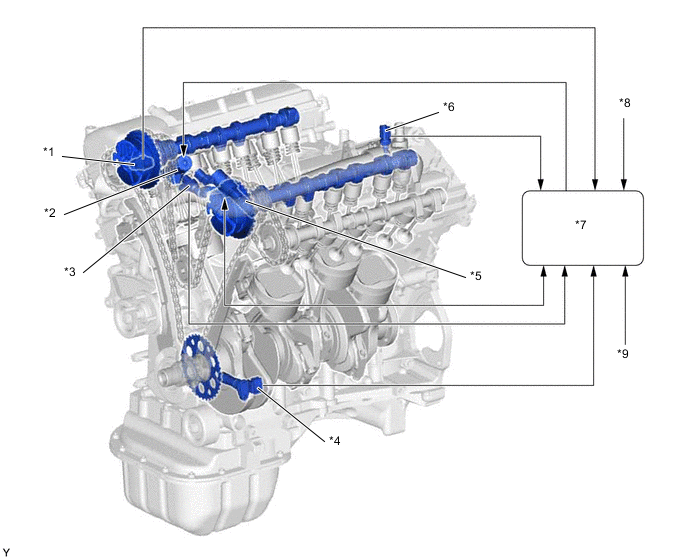

      *1 Cam Position Sensor (Bank 1) *2 Cam Timing Oil Control Valve Assembly RH (Bank 1)
      *3 Cam Position Sensor (Bank 2) *4 Crank Position Sensor
      *5 Cam Timing Oil Control Valve Assembly LH (Bank 2) *6 Engine Coolant Temperature Sensor
      *7 ECM *8 Accelerator Pedal Position Sensor
      *9 Throttle Position Sensor - -
      A01KX38E01

    2. The VVT-i system delivers excellent benefits in the different operating conditions as follows:

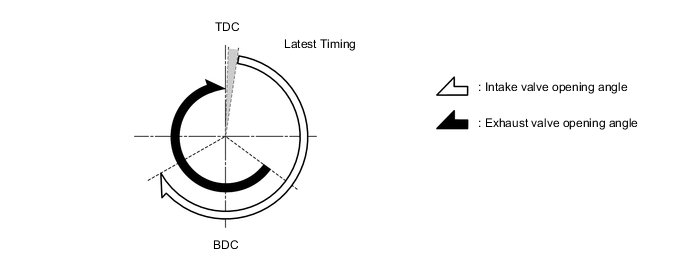

      1. During Idling

        A01KX0RE01
        Objective Effect
        Eliminating overlap to reduce blowback to the intake side.

        • Stabilized idling speed

        • Better fuel economy

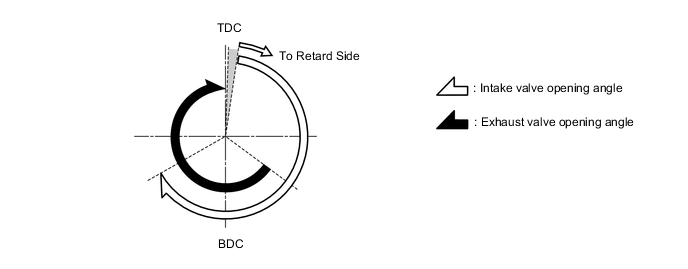

      2. At Light Load

        A01KXK7E01
        Objective Effect
        Decreasing overlap to reduce blowback to the intake side. Ensured engine stability

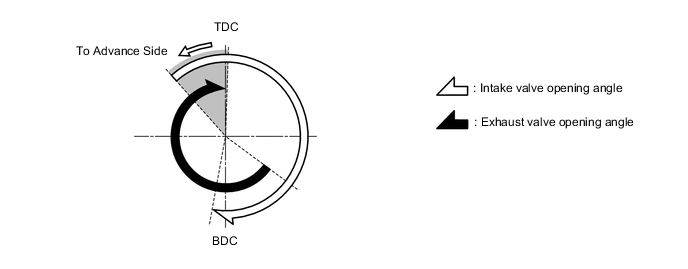

      3. At Medium Load

        A01KXF1E01
        Objective Effect
        Increasing overlap to increase internal EGR to reduce pumping loss.

        • Better fuel economy

        • Improved emission control

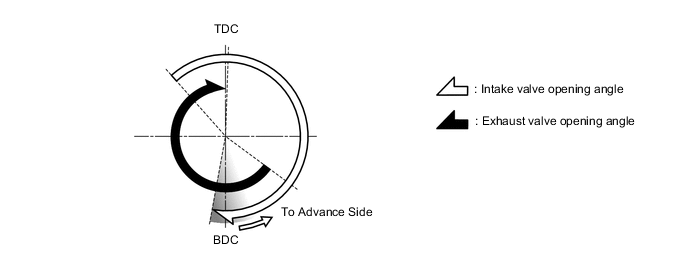

      4. In Low to Medium Speed Range with Heavy Load

        A01KX0UE01
        Objective Effect
        Advancing the intake valve close timing to improve volumetric efficiency. Improved torque in low to medium speed range

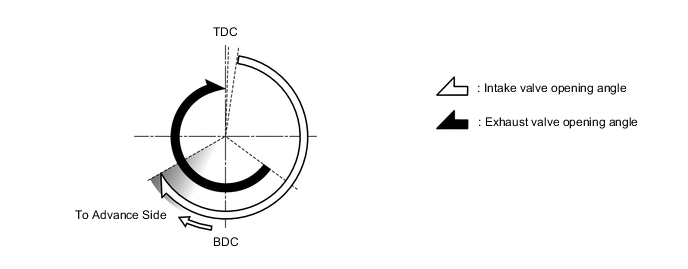

      5. In High Speed Range with Heavy Load

        A01KX1JE01
        Objective Effect
        Retarding the intake valve close timing to improve volumetric efficiency. Improved output

      6. At Low Temperatures

        A01KX0RE01
        Objective Effect
        Eliminating overlap to prevent blowback to the intake side leads to the lean burning condition, and stabilize the idling speed at fast idle.

        • Stabilized fast idle speed

        • Better fuel economy

      7. Starting and Stopping Engine

        A01KX0RE01
        Objective Effect
        Eliminating overlap to minimize blowback to the intake side. Improved startability
