CLUTCH ACTUATOR(for EC65A) INSPECTION

PROCEDURE

  1. INSPECT CLUTCH ACTUATOR ASSEMBLY

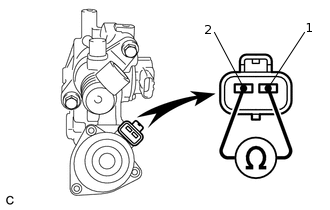

    1. C200984N01

      Measure the resistance according to the value in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Always

      0.1 to 100 Ω

      If the resistance is not as specified, replace the clutch actuator assembly.
