VEHICLE APPROACHING SPEAKER ECU REMOVAL

PROCEDURE

1. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

   Click here

2. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

   Click here

3. REMOVE DECK BOARD ASSEMBLY

   Click here

4. REMOVE REAR NO. 3 FLOOR BOARD

   Click here

5. REMOVE DECK TRIM SIDE COVER BASE LH

   Click here

6. REMOVE DECK FLOOR BOX LH

   Click here

7. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

   Click here

8. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

   Click here

9. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

   Click here

10. REMOVE REAR SEAT ASSEMBLY

    Click here

11. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

12. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

13. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

15. REMOVE SEAT BELT ANCHOR COVER CAP

    Click here

16. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Click here

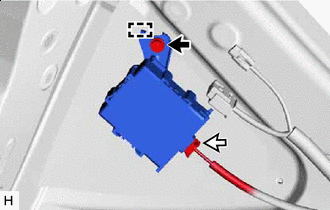

17. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

    1.

       	Bolt
       	Connector

       Remove the bolt.

    2. Detach the guide and remove the vehicle approaching speaker controller.

    3. Disconnect the connector.
