AIR CONDITIONING AMPLIFIER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH

    Click here

  2. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

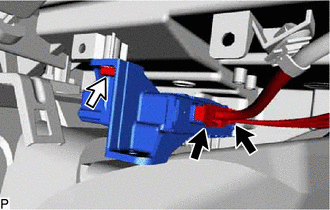

    1. E269438

      Disconnect the 2 connectors from the air conditioning amplifier assembly.

    2. Remove the screw.

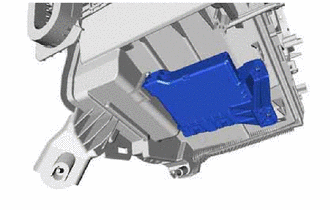

    3. E333613

      Remove the air conditioning amplifier assembly.
