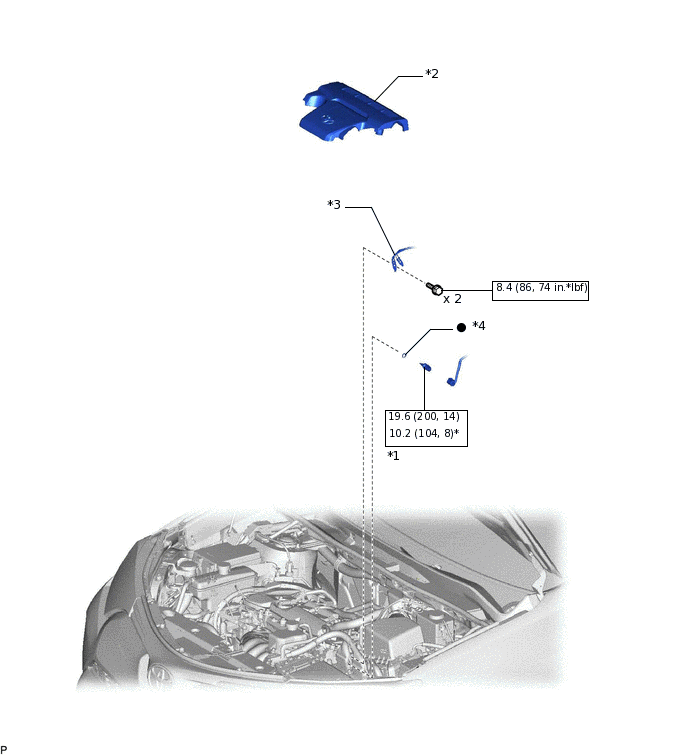

ENGINE COOLANT TEMPERATURE SENSOR COMPONENTS

*1	ENGINE COOLANT TEMPERATURE SENSOR	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	GROUND WIRE	*4	GASKET
	Nm (kgfcm, ft.*lbf) : Specified torque	*	For use with ball joint lock nut wrench
●	Non-reusable part	-	-

*1

ENGINE COOLANT TEMPERATURE SENSOR

*2

NO. 1 ENGINE COVER SUB-ASSEMBLY

*3

GROUND WIRE

*4

GASKET

N*m (kgf*cm, ft.*lbf) : Specified torque

*

For use with ball joint lock nut wrench

●

Non-reusable part

-
