ROOF PANEL ASSEMBLY REPLACEMENT

A004L5C

  1. REMOVAL

    Symbol meaning
    A004L9C Remove Weld Points
    A004L3RE02

  2. INSTALLATION

    Symbol meaning
    A004L29 Spot Weld
    A004L4Z Plug Weld
    A004L33 Body Sealer

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. Before temporarily installing the new parts, apply body sealer to the windshield header panel and roof panel reinforcement.

      Tech Tips

      Apply just enough body sealer for the new parts to make contact.

    4. After welding, apply body sealer to the corresponding parts. (See the painting / coating)

    5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

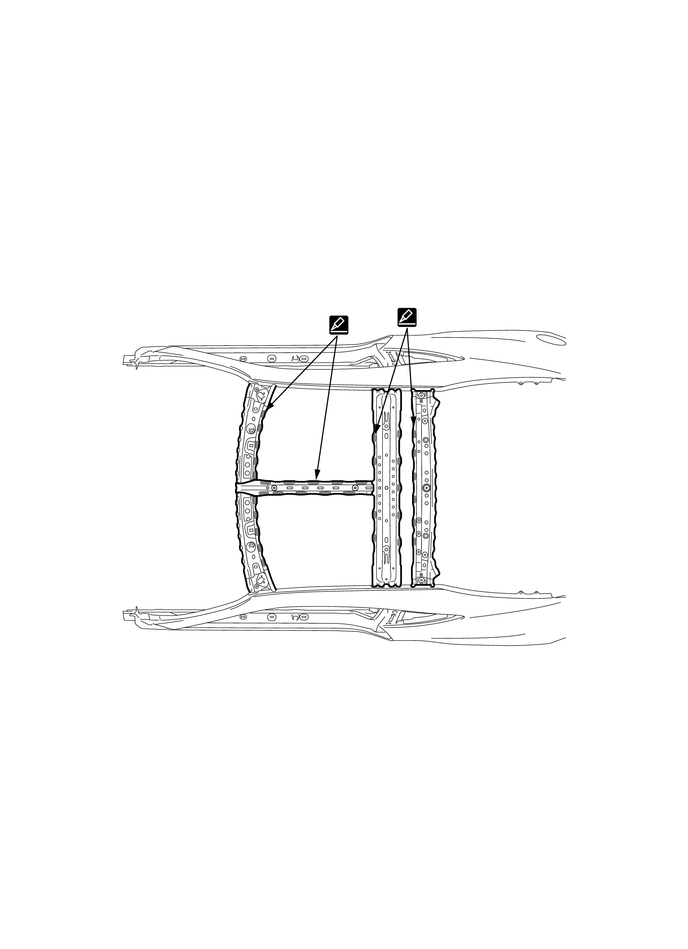

    A004L39
    A004LACE01
    *1 ROOF PANEL
