WASHER LEVEL WARNING SWITCH REMOVAL

PROCEDURE

1. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

   Tip:

   Use the same procedure described for the LH side.

   Click here

2. REMOVE FRONT FENDER LINER RH

   Click here

3. DRAIN WASHER FLUID

   Click here

4. REMOVE LEVEL WARNING SWITCH ASSEMBLY

   1.

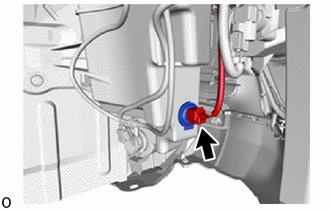

      Disconnect the connector.

   2.

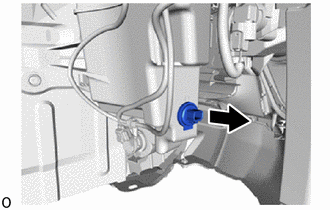

      Pull out the level warning switch assembly in the direction indicated by arrow in the illustration to remove it.
