SHIFT LEVER POSITION SENSOR REMOVAL

PROCEDURE

  1. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  2. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

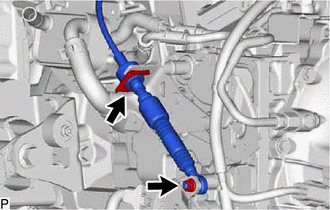

    1. A311126

      Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.

    2. Remove the clip from the transmission control cable assembly.

  3. REMOVE SHIFT LEVER POSITION SENSOR

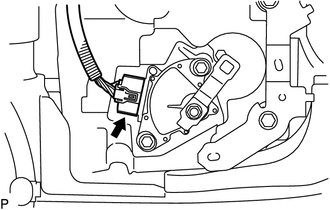

    1. C296675

      Disconnect the shift lever position sensor connector.

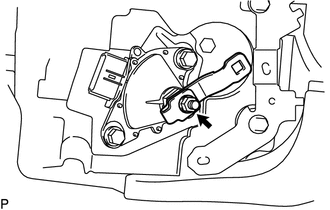

    2. C296676

      Remove the nut, washer, and control shaft lever from the manual valve shaft.

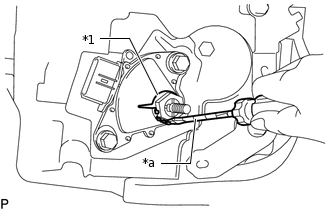

    3. C296677C03

      *1

      Lock Plate

      *a

      Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, pry the tabs of the lock plate.

      Tip:

      Tape the screwdriver tip before use.

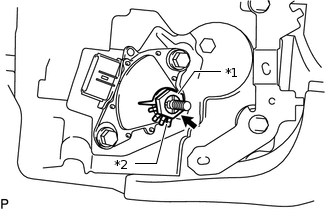

    4. C296678C02

      *1

      Lock Nut

      *2

      Lock Plate

      Remove the lock nut and lock plate from the manual valve shaft.

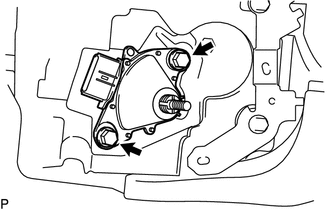

    5. C296679

      Remove the 2 bolts and pull out the shift lever position sensor from the manual valve shaft.
