AFS ECU REMOVAL

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

   1. Remove the instrument panel safety pad sub-assembly (Click here).

2. REMOVE HEADLIGHT SWIVEL ECU ASSEMBLY

   1.

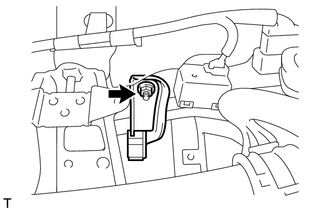

      Disconnect the connector.

   2. Remove the bolt and ECU.
