REAR FOG LIGHT ASSEMBLY REASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL REAR FOG LIGHT LED

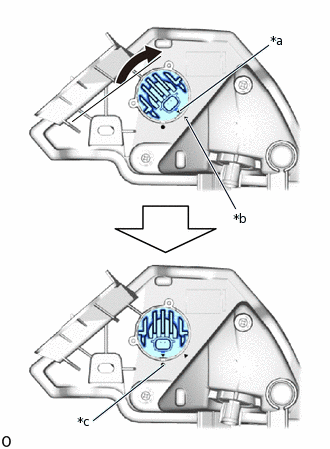

    1. E338910C01

      *a

      Matchmark

      *b

      Unlock Position Mark

      *c

      Lock Position Mark

      Align the matchmark of the rear fog light LED to the unlock position mark, and then rotate the rear fog light LED clockwise until the lock position mark to install the rear fog light LED.

    2. Using a T20H "TORX" driver, install the "TORX" screw.
