INTAKE SYSTEM PARTS LOCATION

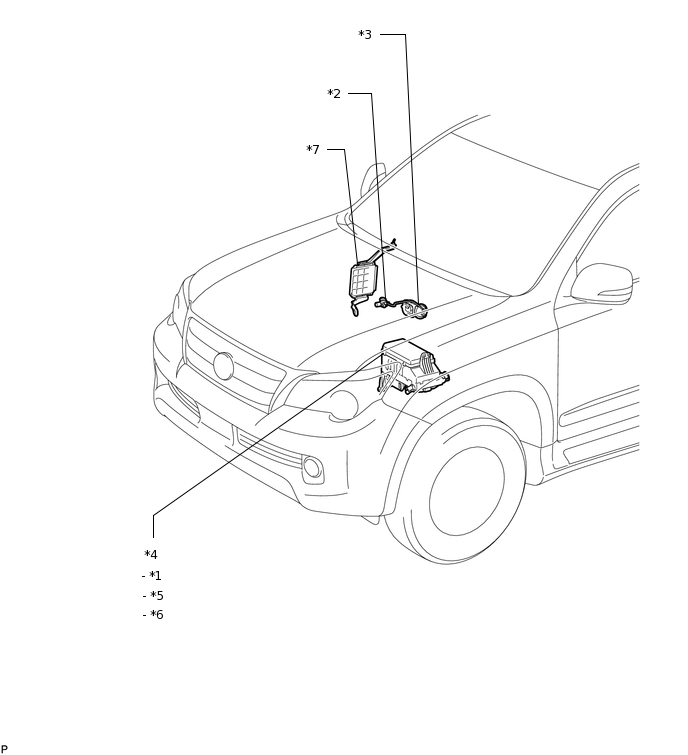

ILLUSTRATION
*1 |
NO. 1 INTEGRATION RELAY (EFI RELAY) |
*2 |
VACUUM SWITCHING VALVE (for ACIS) |
*3 |
INTAKE AIR CONTROL VALVE ACTUATOR |
*4 |
ENGINE ROOM RELAY BLOCK |
*5 |
EFI FUSE |
*6 |
EFI NO. 2 FUSE |
*7 |
ECM |
- |
- |

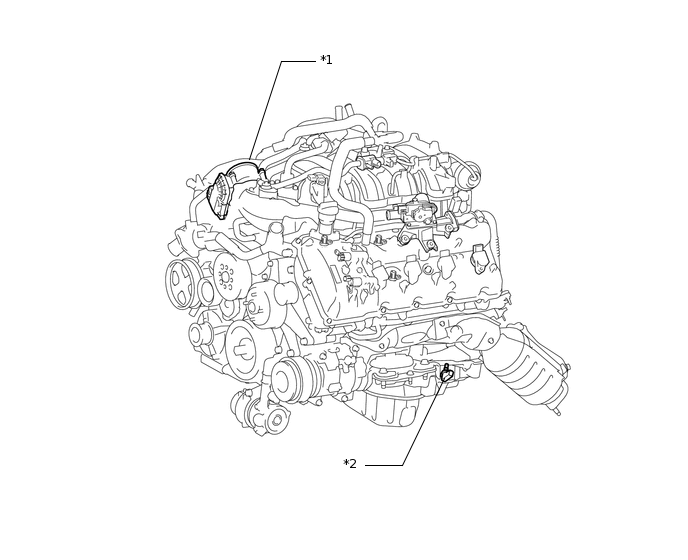

ILLUSTRATION
*1 |
THROTTLE BODY ASSEMBLY |
*2 |
CRANKSHAFT POSITION SENSOR |
