TIRE PRESSURE WARNING SYSTEM

A004GYNE02

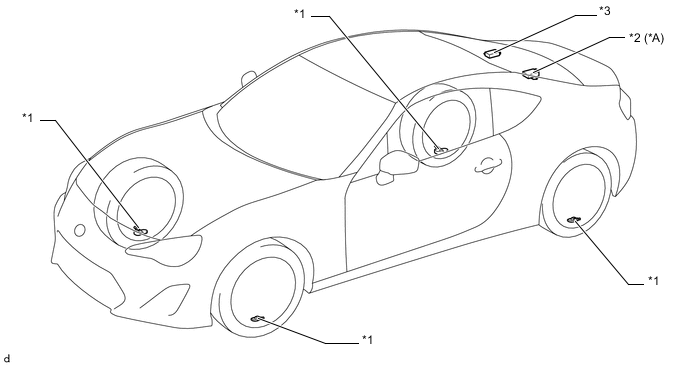

Text in Illustration
*A Models without Entry and Start System - -
*1 Tire Pressure Warning Valve and Transmitter *2 Door Control Receiver
*3 Tire Pressure Warning Receiver - -
A004GR7E02

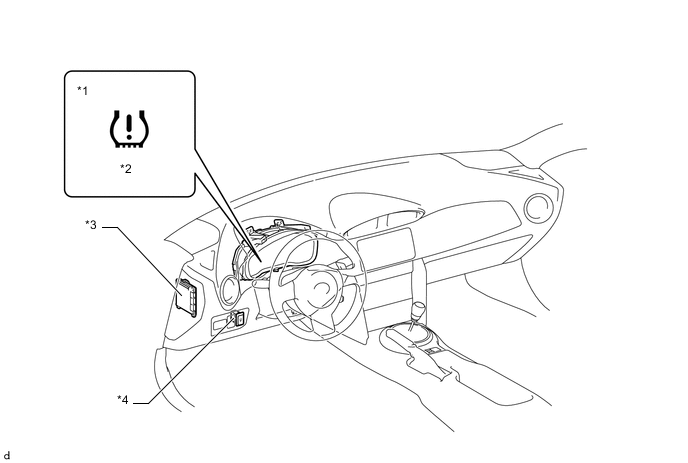

Text in Illustration (Models for LHD: )
*1 Combination Meter Assembly *2 Tire Pressure Warning Light
*3 Main Body ECU (Network Gateway ECU) *4 Tire Pressure Warning Reset Switch
A004GQKE02

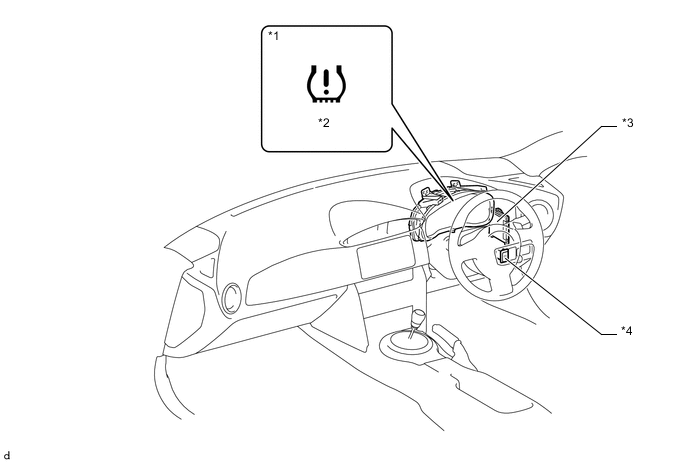

Text in Illustration (Models for RHD: )
*1 Combination Meter Assembly *2 Tire Pressure Warning Light
*3 Main Body ECU (Network Gateway ECU) *4 Tire Pressure Warning Reset Switch
